Digital Fingerprint Camera Muti-language Time Recorder

Introduction

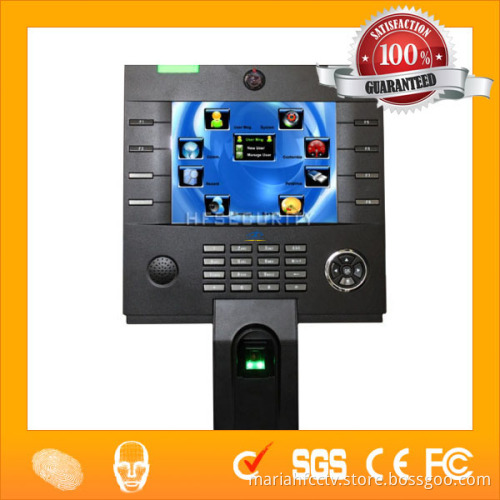

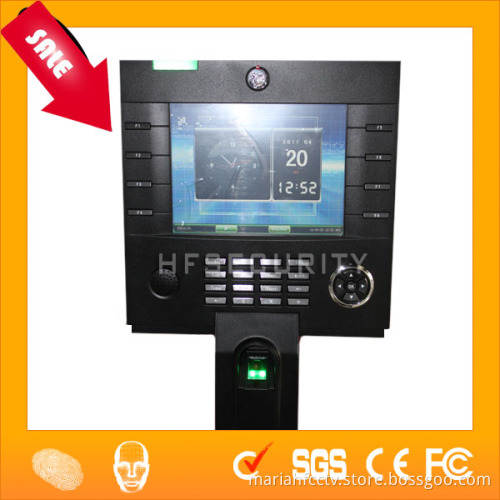

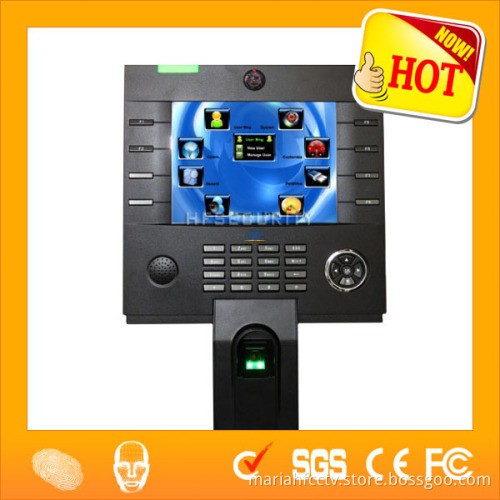

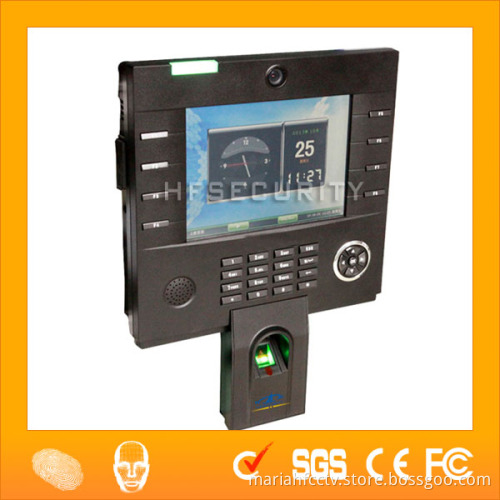

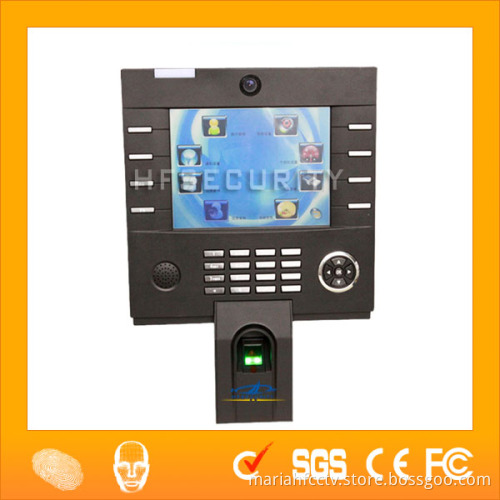

iClock3500 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The iClock2500 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The 8 inch TFT can display more information vividly, including user photo, fingerprint image quality and verification result etc. 8 function keys are the shortcuts to change the attendance status, work-code or to browse the short message, and can be defined as required. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. The camera can capture the image of the user. Backup battery can provide more than three hours power supply when power input fails down.

Descritption

Color TFT screen with GUI Interface for ease of use.

High resolution camera

Internal backup battery

1 touch a-second user recognition

Stores 8,000 templates and 200,000 transactions

Reads Fingerprint, PINs or ID card

Optional integrated smart card reader

Built-in Serial and Ethernet ports

Built-in USB port allows for manual data transfer when network isn't available

Optional integrated Wi-Fi\ GPRS also available.

8 user-defined function keys

Multi Language Support

Built in bell scheduling

Real-time 1-touch data export 3rd party hosted & non-hosted applications

Audio-Visual indications for acceptance and rejection of valid/invalid fingers

SDK available for OEM customers and software developers

Specification

Fingerprint Capacity 8000 templates

Transaction Capacity 200,000

Hardware Platform ZEM800

Communication RS232/485, TCP/IP, USB-host

Camera 300,000 pixels camera

Standard Functions Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID, ID card, Backup Battery, web-server

Optional Functions IC card,9 digit user ID, Wi-Fi, GPRS, Printer, SOAP

Display 8 inches TFT Screen

Power Supply 12V DC 1.5A

Operating Temperature 0 ℃- 45 ℃

Operating Humidity 20%-80%

Dimension 314.5X256.5X79 mm

Gross Weight 3.10 kg
