Diesel Generator Engine Governor Speed Controller ESD5500E
- Payment Type:
- T/T, L/C, Western Union, credit card
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- 快递
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | chingqing China |
|---|---|
| Productivity: | 5000 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,L/C,Western Union,credit card |
| Certificate: | ISO |
| Transportation: | 快递 |

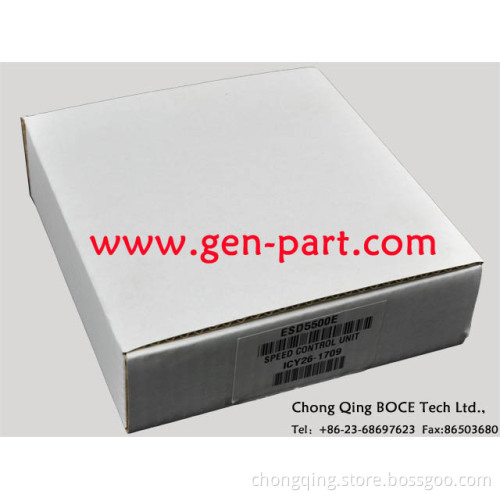

Diesel Generator Engine Governor Speed Controller ESD5500E
ESD5500E built on the basis of the start of the new fuel control and smooth slow start to control the process, these new features can be resolved in the engine to start the process by the rapid filling of black smoke caused by the phenomenon has greatly improved the engine's life . At present,it is very rich, perfect models in the new generators are widely in use.
|
TECHNICAL SPECIFICATIONS: |
||
|
Isochronous Operation/Steady State Stability |
± 0.25% or better |
|
|
Speed Range/Governor |
1K-7.5K Hz continuous |
|
|
Speed Drift with Temperature |
± 1% Maximun |
|
|
IDLE Adjustment |
160 ± 20Hz ~ 60% of set speed |
|
|
Droop adjustment Min.(K-L Jumpered) |
15Hz. ± 6Hz. per 1.0 A change |
|
|
Droop adjustment Max.(K-L Jumpered) |
400Hz. ± 75Hz. per 1.0 A change |
|
|
Droop Adj. Max. (K-L Jumpered) |
875Hz., ± 75Hz. per 1.0 A change |
|
|
Droop Adj. Min. (K-L Jumpered) |
15Hz., ± 6Hz. per 1.0 A change |
|
|
Speed Trim Range |
± 200Hz. |
|
|
Remote Variable Speed Range |
500 -7.5Hz. or any part thereof |
|
|
Terminal Sensitivity |
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
|
|
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance |
||
|
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance |
||
|
P: 10V DC Supply @ 20ma Max. |
||
|
Speed Switch Adjustment Range |
1000-10000Hz. |
|
|
ENVIRONMENTAL: |
||
|
Ambient Operating Temperature Range |
-40°c to +85°c |
|
|
Relative Humidity |
up to 95% |
|
|
Storage Temperature |
-55°c ~ 90°c |
|
|
Shock |
20-100HZ 500mm/Sec. |
|
|
INPUT POWER: |
||
|
Supply |
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
|
|
Polarity |
Negative Ground(Case Isolated) |
|
|
Power Consumption |
50mA continuous plus actuator current |
|
|
Actuator Current Range @ 25°c-(Inductive Load) |
Min. 2.5 Amps, Max. 10 Amps continuous |
|
|
Speed Sensor Signal |
0.5-120 V RMS |
|
|
Speed Switch Relay Contacts(N.O.and N.C.) |
10Amp |
|
|
PHYSICAL |
||
|
Weight |
650g |
|
Note: The performance parameters in the frequency when measuring 4000Hz
Besides, we provide many other models of generator controllers
| NO | Name | Model No |
| 1 | Speed controller | 3044195 |
| 2 | Speed controller | 3062322 |
| 3 | Speed controller | 3098693 |
| 4 | Speed controller | 3037359 |
| 5 | Speed controller | 4914090/1 |
| 6 | Speed controller | BC5111 |
| 7 | Speed controller | BC5500E |
| 8 | Speed controller | BC5522E |
| 9 | Actuator | ADC120-12 |
| 10 | Actuator | ADC120-24 |
| 11 | Actuator | ADC225-12 |
| 12 | Actuator | ADC225-24 |
| 10 | Actuator | ADC300 |
| 12 | Actuator | ACD175 |
| 9 | Actuator | 3408324 |
| 10 | Actuator | 3408326 |
| 11 | Actuator | 3408328 |
| 12 | Actuator | 3408329 |
| 13 | Connecting Rod | for ADC120 ADC225 ACD175 |
| 14 | Actuator Lever | coppery material |
| 15 | Actuator Lever | coppery material |
| 16 | Speed controller | S6700E |
| 17 | Synchronizer | 6714 |
| 18 | Speed controller | LSM672N |
| 19 | Actuator | ACD175 Series |
| 20 | Interface Card | EAM100 |
| 21 | Interface Card | EAM105 |
| 22 | Interface Card | EAM113 |
| 23 | Interface Card | EAM122 |
| 24 | Synchroscope | 6714+ |
| 25 | Speed controller | ESD5221 |
| 26 | Speed controller | ESD5550E |
| 27 | Speed controller | ESD5330 |
Shipping Policy and Delivery Time:
USA, Canada ,Australia, West and North Europe 4-7 Business Days, Other country 5-8 Business Days
Shipping address:Please, make sure to provide us with correct, precise, and detailed shipping Address.
Send Time:
Items will be shipped within 1 to 3 business days upon payment received or cleared.
Note:
If you don't receive items over 30 business days , please notify us.
Return Policy We appreciate your business and offer an instant 7 days return policy.( 7 days after receive the item). The returned item has to be in its original condition. We are able to refund your money without shipping cost.
