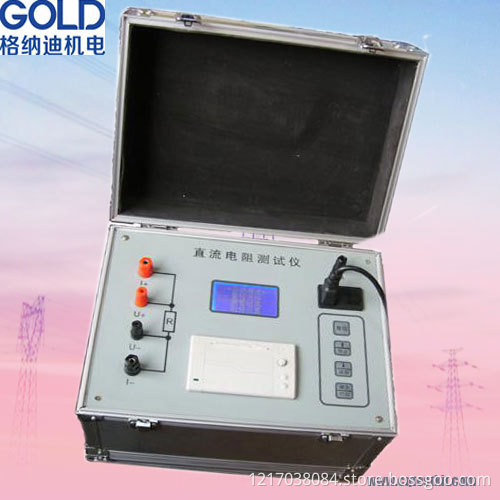

Winding Resistance Tester

pplication

GDZC Series winding resistance tester are applied to measure the DC resistance of inductance

circuit such as power transformer coil, current transformer coil and so on.

Also the tester could be applied to measure the cable resistance in 4-wire mode.

Functions

1 Winding resistance measurement
2 Discharge the energy automatically when test is ended
3 Print the test results by micro printer

Main technique index

1 Test current

GDZC-2 max test current 2A
GDZC-10 max test current 10A
GDZC-20 max test current 20A
GDZC-40 max test current 40A
GDZC-100 max test current 100A
GDZC-20S max test current 20A Three channels measurement at the same time

2 Maximum measurement error: 0.2%RDG+2D
3 LCD display
4 Maximum voltage out for all series: 20V
5 Resolution: 1μΩ (for all series)
6 Measuring range:
1μΩ~4.5kohm( HYZC-2)
1μΩ~20ohm( HYZC-10)
1μΩ~10ohm( HYZC-20)
1μΩ~10ohm( HYZC-40)
7 Rated power supply: AC220V±10%% 50Hz/60Hz
8 Temperature : -10℃~+40℃ RH≤85%
