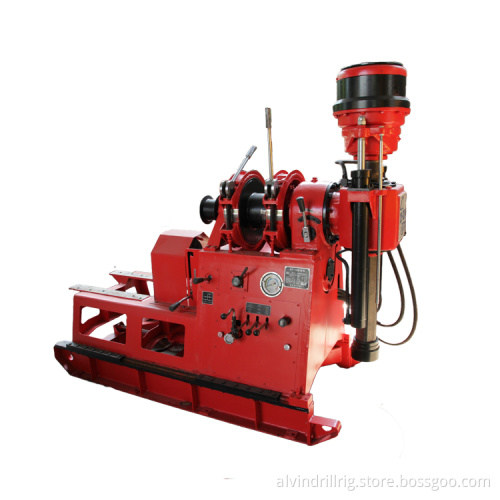

Small drilling machine TPY-30 core sample drilling rig
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 sets per week |
| Supply Ability: | 100 sets per week |
| Incoterm: | EXW |
| Certificate: | CE, ISO9001 |
| Transportation: | Ocean |
Light and Small drilling machine
Easy to move and operate
TPY-30 Small drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.
- Light, good detachability, easy moving, suitable for mountainous area.
- Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.
- Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
- Perfect performances, simple and compact design, easy operation.
- Largely powered, reasonable speed range, suitable for various drilling methods.
Equipped with light and detachable aluminium alloy derrick.
| Drilling capacity | Hole dia | Φ75mm,Φ110mm | |
| Depth | 25m,30m | ||
| Rotation table speeds | 110;234;332 | ||
| Rotation table output torque | 0.326 | ||
| Max pull force | 20 | ||
| Feed stroke | 350 | ||
| Retraction stroke | 220 | ||
| Single rope max lift force | 3.43 | ||
| Hoisting speeds (the second layer) | 0.58;1.15;1.78 | ||
| Oil pump | CBW-F203-AFPL | ||
| Drill body Weight (excluding power unit) (kg) | 240 | ||
| Overal dimensions(L*W*H) | 1270*624*890 | ||
| Power unit | Diesel engine | Model | R185A |
|
|
Power | 6.25 | |
|
|
Speed | 2400 | |
| Electric motor | Model | Y132S1-2 | |
|
|
Power | 5.5 | |
|
|
Speed | 2900 | |
Ⅰ.Warranty
The main machine has 12-month warranty, excluding the wearing parts, we offer these parts with the lowest price for our customer.
Ⅱ.Installation and Commissioning
A.We provide our customers foundation and layout drawings after payment.
B. If needed, we will send technical engineers to the Buyer`s site for supervision of erection and Commissioning. Expenses abroad should be paid by the buyer.
Ⅲ. Inspection:
A. Customer inspection in factory;
B. Supplier offer pictures for inspection;
C. The third party inspection appointed by Customers.
