ZLJ-1000 powerful deep hydralic tunnel core rock drilling equipment

Get Latest Price

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 sets per week
Supply Ability:	100 sets per week
Incoterm:	EXW
Certificate:	CE, ISO9001
Transportation:	Ocean

Product Description

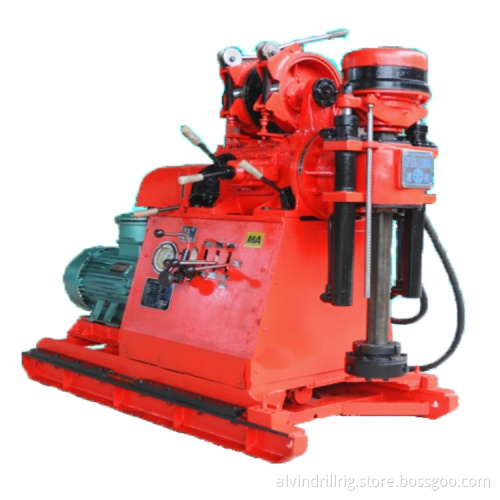

ZLJ-1000 DRILLING equipment is newly designed and developed according to the spindle-type core drill, hot compact size big pale hole hydraulic drilling rig for coal mining is suitable for coal mine drilling and coal field exploration that drilling with diamond.

1. Mast with top-head, top-head driven by mechanical transmission;

2. Hydraulic cylinder make the top-head feed or feed back. Long feed stroke, drilling reliably;

3. The angle range of mast is adjusted by oil cylinder, good detachability, easy to maintain.

Spindle forward speed(r/rim)	83/175/335/560
Max. spindle torque(Nm)	1000/450/230/135
Max. spindle push force (KN)	18,.5
Max. spindle pull force(KN)	27
Max. spindle push speed(M/min)	0-8.7
Max. spindle push distance(mm)	450
Max. single hoist pull force(k N)	12
Drum dia.(mm) Big Pale Hole Drilling Rig	140
Wire rope dia.(mm)	11
Drum capacity(m)	25
Drilling depth in theory(42mm pipe)(m)	150
Electric motor power( K w)	11
Dimension(mm) Mini Drilling Rig	16407401350
Weight (except power unit and drill pipe)(kgs) Light Weight	500
Weight of largest component(kg)	80
Drilling angle range( º ) Big Pale Hole Hydraulic Drilling Rig	-90~+90
Rated pressure of hydraulic system(M pa)	7
