top drive easy to detachable anchor drilling rigs for sale MGY-100A
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100 sets per week |
| Supply Ability: | 100 sets per week |
| Incoterm: | EXW |
| Certificate: | CE, ISO9001 |
| Transportation: | Ocean |
Product Description
Product Description

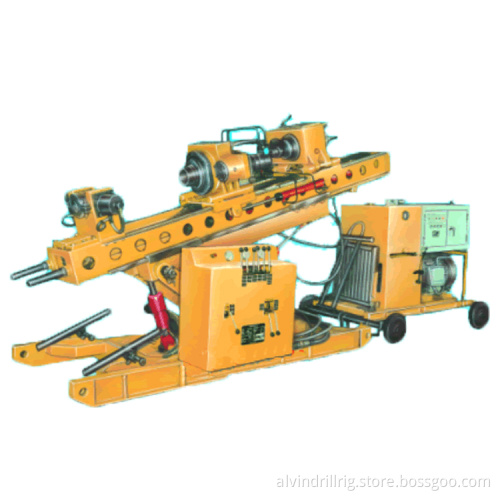

MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.
- Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
- It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
- Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
- Large powered, top-drive head has big torque and pull force, wide rotary speed range.
- Holder and unscrew device, working efficiently, labor saving.
- 2-tier guiding rail, easy to find hole position.
| Hole dia(mm) | Φ110-Φ200 | Drilling depth(m) | 100-60 |
| Hydraulic power pack type | Variable(Electric motor) | Variable(Diesel motor) | |
| Power model | Y200L2-2 | CC490Q | |
| Power and ratings | 37Kw/2950r/min | 36Kw/2800r/min | |
| Hydraulic system pressure(Mpa) | 20 |
|
|
| A-top drill head speeds(r/min) | Ⅰseries | 0-100 | 0-95 |
| Ⅱ series | 0-30 | 0-29 | |
| A-top drill head torque(Nm) | Ⅰseries | 1600 |
|
| Ⅱ series | 5000 |
|
|
| B-top drill head speed(r/min) | 0 | 10 | |
| B-top drill head torque(Nm) | 6400 |
|
|
| lift/feed speeds (m/s) | 0-0.16/0-0.21 |
|
|
| Max pull force/Max push force(N) | 80000/57000 |
|
|
| Max feed stroke (mm) | 2000 |
|
|
| Drilling angle(°) | Elevation20°Depression angle100° | ||
| mast Raised height horizontally(mm) | 300 |
|
|
| Drill body weight (kg) | 1800(approximately) | ||
| Powerpack weight(kg) | 700(approximately) | ||
| Mount type | Plate mounted,drill body separated from power | ||
