ZLJ-800 hydraulic Tunnel boring machine rig drilling
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100 sets per week |
| Supply Ability: | 100 sets per week |
| Incoterm: | EXW |
| Certificate: | CE, ISO9001 |
| Transportation: | Ocean |
Product Description
Product Description

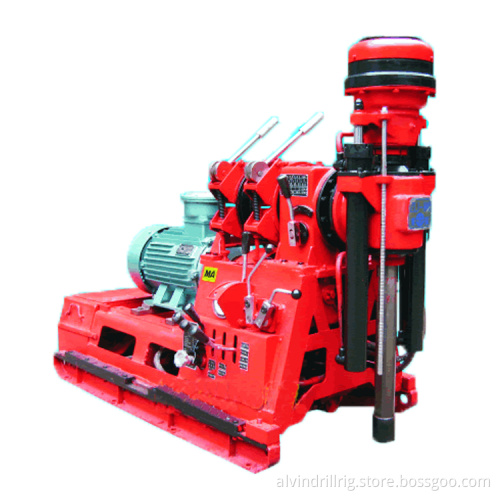

ZLJ-800 tunnel drilling machine for coal mining is developed based on XY-2PC drilling rig of spindle type core
drilling,it
is suitable for tunnel engineering drilling with diamond bit,tungsten
carbide bit in coal mining and underground exploration drilling for coal
field.
It is light in weight,compact size,lower center of gravity,and easy to move etc.
| Item name | Unit | Number | |
| Rated speed of rotation table shaft | r/min | 162/330/584/1190 | |
| Rated output torque of rotation table shaft | N·m | 800/360/205/90 | |
| Rated reverse speed of rotation table shaft | r/min | 196 | |
| Rated reverse output torque of rotation table shaft | N·m | 560 | |
| Max.push force of spindle | kN | 30 | |
| Max.pull force of spindle | kN | 42 | |
| Max.feed stroke | mm | 500 | |
| Max.pull force of hoist with single | kN | 10 | |
| Drum dia. | mm | Φ180 | |
| Wire rope dia. | mm | Φ10 | |
| Drum capacity | m | 30 | |
| Drilling depth in theory | m | ||
| Drill pipe mode | Φ42mm/rod | 200 | |
| Φ50mm/rod | 150 | ||
| Φ43mm/wire line rod | 300 | ||
| Φ53mm/wire line rod | 200 | ||
| Drilling angle range | º | -90~+90 | |
| Rated pressure of hydraulic system | MPa | 8 | |
| Model of electric motor | YBK2-L160L-4 | ||
| Power of electric motor | kW | 15 | |
| Overal dimension | mm | 1810×800×1330 | |
| Weight(excluding power unit and rod) | kg | ≈650 | |
| Max.weight of detached part | kg | 100 | |
