MGQ--30 Hot Sale China Manufacturer Hydraulic small drilling rigs

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 sets per week
Supply Ability:	100 sets per week
Payment Type:	T/T,L/C,Western Union
Incoterm:	EXW
Certificate:	CE, ISO9001
Transportation:	Ocean

Product Description

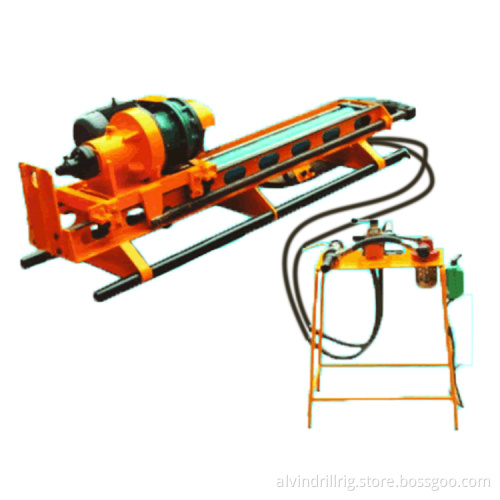

MGQ-30 hydraulic anchoring drilling rig is mainly used in treating the disaster of landslide,rockslide so on,also used in rock anchoring,anchoring bar,strengthening retainingwll,supporting in deep foundation pit,mini-pile hole drilling,hydrography well drilling and high pressure jet-grouting for hydroelectric powerstation,communication,energy and capital construction.

drilling capacity	hole dia Φ65mm,depth 40m
	hole dia Φ130mm,depth 30m
pneumatic pressure(Mpa)	0.5~1.2
top-head speed(r/min)	35
top-head torque(N.m)	1027
max pull force(N)	24000
max feed force(N)	22000
max stroke(mm)	1200
angle range	-90°~90°
*overal dimension of drill body(LWH)mm/weight(kg)*	2000×805×646/295
*dimension of operation desk(LWH)mm/weight(kg)*	636×430×700/25
Power unit(electric motor)	model	Y112M-4
	power(kw)	4
	speed(r/min)	1440
