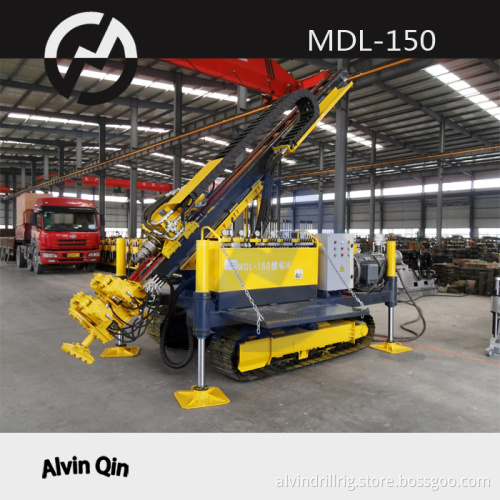

Crawler type Drilling Rig water well borehole drilling machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

water well drilling machine

Conventional drilling and DTH hammer drilling

Horizontal drilling and vertical drilling

Best price Multipurpose drilling machine

Specification

Basic parameter
Drilling diameter	(mm)	150-250
Rotary spray pile diameter	(mm)
Drilling depth	(m)	130-200
Drill rod caliber/Tube diameter	(mm)	73, 89, 102, 114
Drill pipe inclination angle	(°)	0-90
Gyrator parameter
Rated output speed	(r/min)	10, 20, 30, 35, 40, 60, 65, 70, 85, 130, 170
Rated output torque	(N.m)	7500
Route	(mm)	3400
The route of shaft shackle slipping	(mm)	900
Lifting power	(kN)	70
Lifting speed	(m/min)	0-5(adjustable), 7, 23, 30
Pressure	(kN)	36
Pressure speed	(m/min)	0-10(adjustable), 14, 46, 59
Parameter of whole machine
Input power(electric motor)	(kW)	55+18.5
Overall dimension of main engine
Transport state(lengthwidthheight)	(mm)	540021002000
Construction state(lengthwidthheight)	(mm)
Weight of main engine	(kg)	6000
Walking parameter
Walking pattern		Crawler walking
Climbing angle	(°)	25
Crawler ground bearing	(kPa)	37.8
Traveling speed	(km/h)	0.4
Turning parameter
Turning way		Whole manual rotation
Turing structure		Pivotal bearing
Location mode		Locating pin
Auxiliary parts situation
Holder shackle device		Standard configuration
Crawler chassis		Standard configuration
