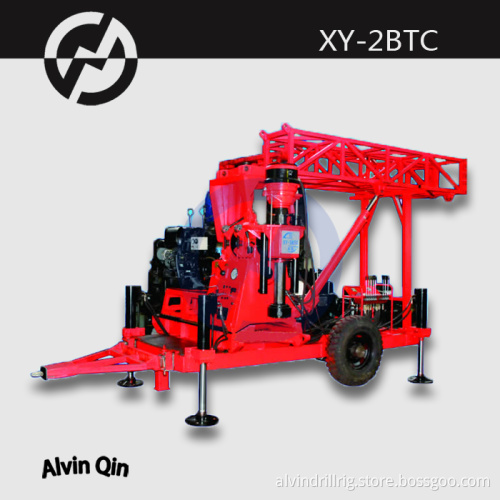

Drilling for water XY-2BTC trailer mounted drilling rig

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 SET PER MONTH
Supply Ability:	100 sets
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE,ISO9001
Transportation:	Ocean

Product Description

XY-2BTC core drilling machine for sale is a kind of trailer mounted core drilling rig with hydraulic mast for shallow-medium depth hole core drilling.

It is not only suitable for carbide,diamond bit drilling for large and small diameter core drilling, butalso can be used for engineering geological survey,hydrology,water wells,and the construction of large diameter drilling and anchoring hole construction.

The tower of the rig has function of the ups and downs,folding,the angle of the mast can beadjusted to drill inclined holes

Specification

Drilling depth(m)	500 m
spindle speed (r/min)	forward	57; 99; 157; 217; 270; 470; 742; 1024
	reverse	45; 212
Max. spindle torque(N·m)	3200
Max. spindle pulling force (KN)	60
spindle stroke(mm)	540
Max. Hoisting force with single-rope(KN)	30
Inner diameter of spindle(mm)	96
oil pump	CBK1020/8
power unit	diesel egnine	F3129L 24 KW 1500 r/min
Height of mast(m)	8
Max.hook load of mast(KN)	29.4
Max.static load of crown block beam(KN)	58.8
Number of pulley(pc)	5
adjustable angle range of mast	45°~90°
Overall dimension (LWH)(mm)	transportation status 4500×2150×2950 mm
	drilling status 3450×2150×8206 mm
Weight (excluding power unit and tower and trailer, mud pump , wire-line winch)	1200kg
