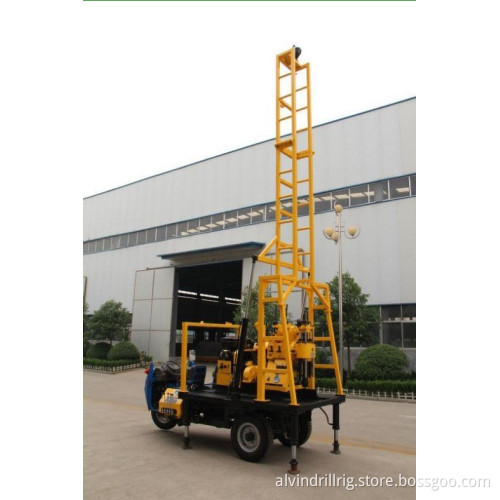

XYC-200 muntipurpose three wheel trailer mounted hydraulic spindle core bore drilling machine

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 SET PER MONTH
Supply Ability:	100 sets
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE,ISO9001
Transportation:	Ocean

Product Description

core bore drilling machine

Vehicle mounted drilling machine

New designed 2015, the best new choice for your projects.

Application&Features

XYC-200 muntipurpose three wheel vehicle mounted hydraulic spindle core bore drilling machine is designed for Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.

Features:

1, XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig

2, It adopts three-wheel chassis 7YP-1475D1, the drive systems, hoist and mud pump are mounted on this chassis, reasonably compacted layout, easy to operate

3. It configures BW-160 mud pump, high pressure, big flow, which can ensure drilling depth and diameter

4. The rig has shifting device, it can move on the vehicle, convenient to operate while drilling

5. The hydraulic folding mast is safe and convenient to operate.

Specifaction

Drilling depth(m)		30-200
Drilling diameter(mm)		300-75
Drilling Angel(°)		90-75
Spindle rotating speed(r/min)		64,128,287,557
Spindle stroke(mm)		450
Main hoisting capacity(single line)(Kg)		1600
Main hoisting line capacity(m)		35
hoisting speed(r/s)		17,35,75,151
Wireline diameter(mm)		12.5
Mast height(mm)		7000
Mast effective height(mm)		6500
Kelly/active pipe(mm)		59*53
Drill rod(mm)		42,50,60
Drill rig weight(kg)		1150
Power Unit		Model :ZS1115 desiel engine
		Rated power: 14.7kw/2200rpm
BW-160 mud pump		Rated flow(L/min)	160
		Rated pressure(Mpa)	1.3
		Driving power(kw)	5.15
		main machine weight(kg)	190
		Demension(mm)	1110725965
Chassis	Model	7YP-1475D1
	Drive mode	Rear-wheel drive
	power unit	Model	ZS1115E2
		emission standard	GB18322-2002,GB19756-2005(Ⅱ)
		Rated power(KW)	16.2
		Rotating speed(r/min)	2200
