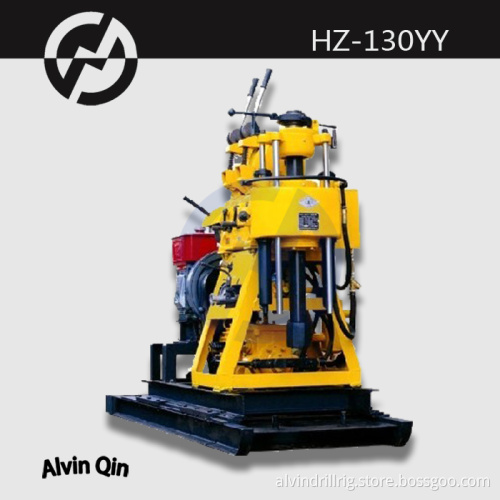

HZ-130YY india small water well drilling rig, trailer mounted ground water drilling machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Ground water drilling machine

Integrated a slide rail on HZ-130Y

Easier to move and operate

Specification

Unity machine parameter
Drilling depth	10-130m
Maximum open hole caliber	260mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90~75
Drill weight (No include power)	510 560kg
Unity machine dimensions	2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed	142,285,570r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	960kg
Single line lifting speed	0.41,0.82,1.64m/s
Tightrope caliber	27m
Mud pump of HZ-130YY model drilling rig
Type	Horizontal single urn twin-action
Displacement	95/77L/min
Diesle engine	Model s1110 18HP
Electric motor	Y160M-4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water to exit caliber	25mm
Triangle conveyor belt	B1575mm
