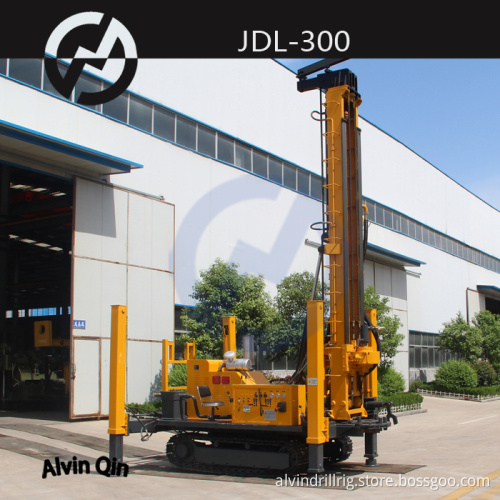

JDL-300 DTH percussion drilling rig water-air multipurpose crawler drilling machine

JDL-300 water-air dual purpose crawler drilling machine

It can adopts down the hole hammer to drilling with percussive method and conventional method as well

Best choice for multipurpose projects usage.

perforación de pozos de agua| perforadora de pozos de agua| perforaciones para agua| perforaciones para pozos de agua| maquina perforadora de agua| partes de un equipo de perforacion| equipos de perforacion diamantina

1. This drill has more positive speed grades and reasonable speed range, with bigger output torque at low speed which gives it an extensive use range; it is Suitable for alloy, diamond mud drilling and DTH hammer drilling as well.

2. It has 2 reverse inversion speed in order to deal with accident.

3. JDL-300 works with mechanical transmission and auxiliary hydraulic transmission which effectively reduce the power consumption, and also makes drilling cost lower.

4. JDL-300 uses long stroke multiple speed system, mechanical power head with stroke as 3400MM,to improve drilling efficiency, prevents accidents such as balling up and burning bits from happening.

5. JDL-300 adopts double oil pump, single pump works whilst drilling, double pump works whilst hoisting, which lower power loss and shorten auxiliary time.

6. It has highly advanced mechanical structure and reasonable layout which is convenient to repair and maintain.

7. Using the crawler chassis with support oil cylinder which has a stroke of 1.5m, it can be loaded automatically and moved easily.

8. Some interfaces are reserved to expand functions according to the technological requirements of different customers.

Power unit rotating speed/Torque Parameter(Diesel engine rotate speed as per 1600r/min)
