drilling machine GX-1TD water well drilling machine

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 SET PER MONTH
Supply Ability:	100 sets
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE,ISO9001
Transportation:	Ocean

Product Description

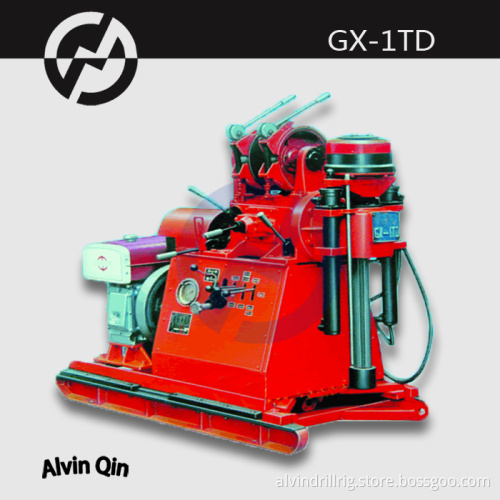

GX-1TD water well drilling machine

For Geological drilling for railroad, highway, bridge tunnel,

power station foundation, civil and industrial buildings,

blasting hole etc.

perforacion de pozos para agua| herramientas de perforacion de pozos| equipos de perforacion diamantina| equipos de perforacion de pozos| equipo de perforacion de pozos

Application&Features

1.Spindle type, mechanical transmission, hydraulic feeding, and steel skid frame mounted.
2.Hydraulic retracting lets drill body away from the drill hole, in order to hoist or lower the drilling tools.
3.Hydraulic chuck, labor saving.
4.Advanced design, multi-function, compact structure, lightweight, good detachability, easy to operate.
5.Large-powered, reasonable range of speeds, large torque, suitable for many drilling methods.
6.According to user's requirements the drilling machine can be equipped with mudpump, a variety kinds of drilling tools, A-derrick etc, for client choice.

Specification

spindle speeds (r/min)		90;191;360;600
max torque (Nm)		1000
Max pull force (KN)		27
spindle stroke (mm)		450
max hoisting force with single line (KN)		14.7
Oil pump		CB32
Power unit	diesel engine	S1100A 2200r/min 11KW
	electric motor	Y160M-4 1460r/min 11KW
Weight (Excluding power)(kg)		500
overal dim(L×W×H)(mm)		1560×620×1205
