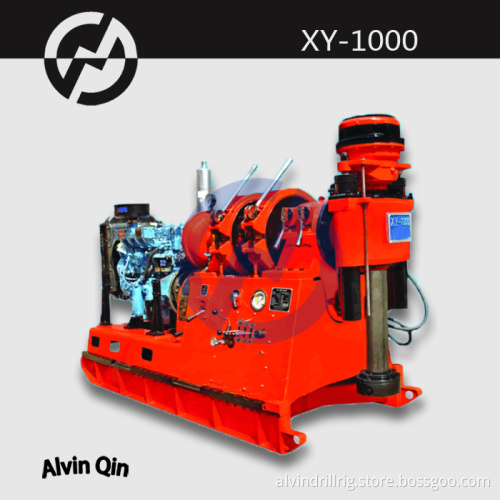

1000m depth water well drilling machine XY-1000

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 SET PER MONTH
Supply Ability:	100 sets
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE,ISO9001
Transportation:	Ocean

Product Description

XY-1000 spindle type of core drilling machine is brand new products which is developed and designed newly based on current thousand meters sereies of drilling machine.
It is suitable for drilling large dia. hole and small dia. hole core drilling with diamond bit and carbide bit, also suitable for engineering geology drilling, hydrogeology drilling, water well drilling and large dia. pile hole drilling. It has features of reasonable arrangement, good quality, light weight, big capability, wide performance and good exchangability etc.

Specifaction

Drilling depth (m)		1000
Spindle speeds (r/min)	forward	87; 160; 230; 270; 334; 500; 710; 1030
	reverse	72; 220
Max.toque of spindle (Nm)		4050
Spindle stroke (mm)		600
Spindle inner dia. (mm)		96
Spindle pull/push force(kg)		10000/7500
Hoist max. lifting force with single rope(kg)		4500
Hoist lift speed with single rope (the third layer)(m/s)		0.69; 1.27; 1.81; 2.64
		0.69; 1.27; 1.81; 2.64
Hoist wire rope dia. and capacity (m)		17.5(170kg/cm2)wire rope capacity 110 m
		18.5(170kg/cm2)wire rope capacity 90 m
Workable speed of water brake (r/min)		700- 1800
Balance speed of water brake(single rope)/balance load(single rope)		3-8m/s/45kN
		3-8m/s/45kN
Hydraulic system		(32+12)L/min twin-gear pump,pressure:80kg/cm2
Driving stem		Hexagonal kelly 89×79×6000 mm
Power unit	Electric motor	Y225-4 37Kw 1480r/min
	Diesel engine	R4105G54 42Kw 1500r/min
Weight (excluding power unit)(kg)		2180
Max. detachable subassembly (kg)		320
Overal dimesion (L×W×H)(mm)		2920×1100×1840

Packaging & Shipping

Package: Wooden Case or Plywood

Deliverey: Container ship

Company Information

Established in 2009.

Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.

FAQ

1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, piling rig, etc. We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.

Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2,Are your products qualified?

Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.

3,How about your machine quality?
All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
