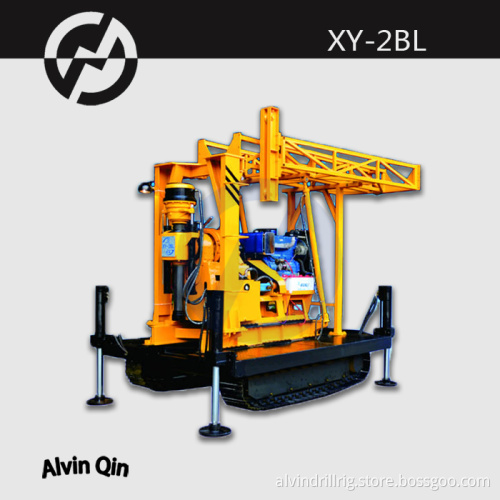

water well drilling rig drilling machine XY-2BL

Get Latest Price

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 sets per week
Supply Ability:	100 sets per week
Incoterm:	EXW
Certificate:	CE, ISO9001
Transportation:	Ocean

Product Description

Application&Features

XY-2BL rig is a mobile drilling rig developed based on our XY-2 core drilling rig , integrating drilling rig, crawler, mud pump, console rack and other devices into the integral one. It is mainly targeted at the shallow-medium hole of geology core drilling, and where the mobility is important. It is modular and integral drilling rig.

Features:

Integrated crawler, rig, mud pump, console racks;
Crawler, the whole support rigs and tower with ups and downs are controlled by the hydraulic system of the rig, easy to operate and transport;
The whole set of equipment can move to relocate, improve drilling efficiency, reduce labor intensity;
The tower has the function of ups and downs , folding , easy walking and transportation;
Rig with more (8 block) the speed of progression and reasonable speed range, and the relatively large low-speed torque, wide range of application.
Rig has two reverse gear speeds, easy to deal with incidents;
Rig has longer feed stroke as long as 600mm, will help improve drilling efficiency and reduce blocking drill, burning accidents;
Rig has double oil pump, less power consumption, lower oil temperature of hydraulic system;
Rig has few control levers, rational layout, flexible and reliable operation;
In addition there is a normally closed upper hydraulic chuck on , but also with lower mechanical man-powered chuck.

Specifaction

1	Drilling depth (NQ drill rod)		Approximately 500m
2	Spindle speed		Forward	57; 99; 157; 217; 270; 470; 742; 1024
			Reverse	45; 212 r/min
3	Spindle Maximum torque		3200 N·m
4	Spindle max pulling force		60 KN
5	Spindle stroke		600 mm
6	Max. lifting force of the hoist with single rope		30 KN
7	Inner diameter of the spindle		96 mm
8	Retraction distance		305 mm
9	Retraction distance for the host drill rig		330 mm
10	Retraction distance for both drill rig and tower		160 mm
11	Oil pump		SCB32/12 double gear pump
12	Power unit	engine power	30 KW 1500 r/min
		electric motor	22 KW 1470 r/min
13	Crawler maximum walking speed		1.2 km/h
14	Crawler Climbing capacity		no more than 25 °
15	Tracked Ground pressure		0.042 MPa
16	Rig height		8 m
17	Hook load of the tower		29.4 kN
18	Max.static load of crown block beam		58.8 kN
19	Quantity of pulley		2
20	Angle range of tower ups and downs		0°~ 90°
21	Rig Dimensions ( tower horizontal position )		*(LWH) 4450×2166×3080 mm*
22	Total weight		5500 kg
