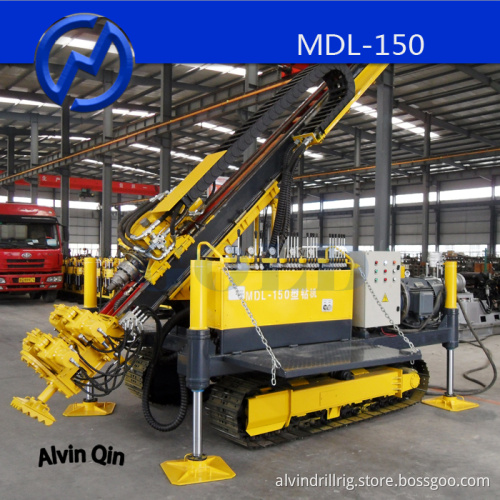

Horizontal directional drilling rigMDL-150

Basic parameter
Drilling diameter	(mm)	150-250
Rotary spray pile diameter	(mm)
Drilling depth	(m)	130-200
Drill rod caliber/Tube diameter	(mm)	73, 89, 102, 114
Drill pipe inclination angle	(°)	0-90
Gyrator parameter
Rated output speed	(r/min)	10, 20, 30, 35, 40, 60, 65, 70, 85, 130, 170
Rated output torque	(N.m)	7500
Route	(mm)	3400
The route of shaft shackle slipping	(mm)	900
Lifting power	(kN)	70
Lifting speed	(m/min)	0-5(adjustable), 7, 23, 30
Pressure	(kN)	36
Pressure speed	(m/min)	0-10(adjustable), 14, 46, 59
Parameter of whole machine
Input power(electric motor)	(kW)	55+18.5
Overall dimension of main engine
Transport state(lengthwidthheight)	(mm)	540021002000
Construction state(lengthwidthheight)	(mm)
Weight of main engine	(kg)	6000
Walking parameter
Walking pattern		Crawler walking
Climbing angle	(°)	25
Crawler ground bearing	(kPa)	37.8
Traveling speed	(km/h)	0.4
Turning parameter
Turning way		Whole manual rotation
Turing structure		Pivotal bearing
Location mode		Locating pin
Auxiliary parts situation
Holder shackle device		Standard configuration
Crawler chassis		Standard configuration
