Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd
Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd
Drilling rig for slope stabilization, slope investigation
  • Drilling rig for slope stabilization, slope investigation
Drilling rig for slope stabilization, slope investigation

Drilling rig for slope stabilization, slope investigation

Incoterm:
EXW
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
15 Days
Transportation:
Ocean
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 100 sets per week
Supply Ability: 100 sets per week
Incoterm: EXW
Certificate: CE, ISO9001
Transportation: Ocean
Product Description
Product Description

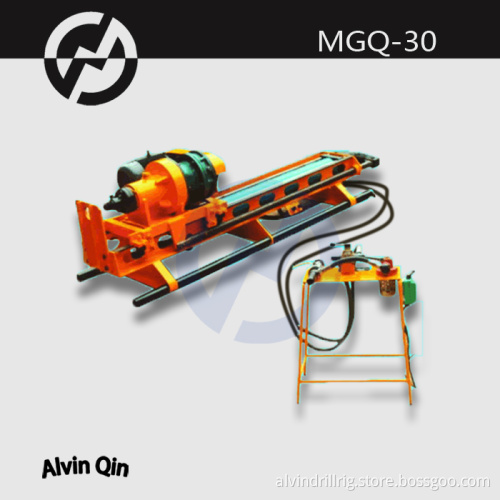

horizontal directional drilling rig ,extensive components MGQ--30


MGQ-30hydraulic anchoring drilling rig is mainly used in treating the disaster of landslide,rockslide so on,also used in rock anchoring,anchoring bar,strengthening retainingwll,supporting in deep foundation pit,mini-pile hole drilling,hydrography well drilling and high pressure jet-grouting for hydroelectric powerstation,communication,energy and capital construction.



drilling capacity hole dia Φ65mm,depth 40m
hole dia Φ130mm,depth 30m
pneumatic pressure(Mpa) 0.5~1.2
top-head speed(r/min) 35
top-head torque(N.m) 1027
max pull force(N) 24000
max feed force(N) 22000
max stroke(mm) 1200
angle range -90°~90°
overal dimension of drill body(L*W*H)mm/weight(kg) 2000×805×646/295
dimension of operation desk(L*W*H)mm/weight(kg) 636×430×700/25
Power unit(electric motor) model Y112M-4
power(kw) 4
speed(r/min) 1440

Package: Wooden Case or Plywood

Delivery: Container ship, 10 days after receiving deposit



Established in 2009.

Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.



1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, piling rig, etc. We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.

Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2,Are your products qualified?

Yes, our products all have gainedISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?All of our machines hold theISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offerone-year quality warrantyfor machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
