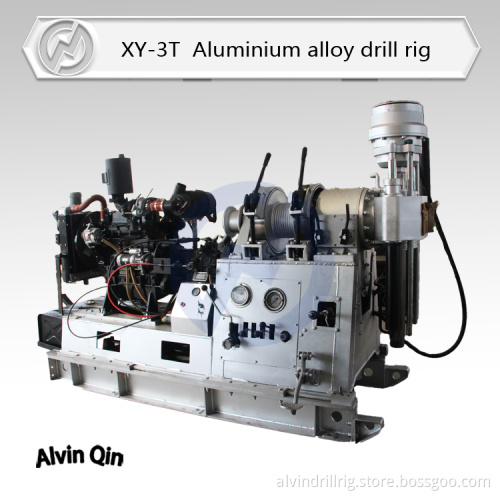

Super light weight aluminium alloy XY-3T hydraulic water well drilling machine

Get Latest Price

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 sets per week
Supply Ability:	100 sets per week
Incoterm:	EXW
Certificate:	CE, ISO9001
Transportation:	Ocean

Product Description

Aluminium Alloy-- 1/3 weight of Steel material

XY-3 water well drilling machine is mainly used for geological exploration, hydropower project, road and railway construction, buliding project

and big diameter water well drilling project

Application&Features

XY-3T is mainly diamond and carbide drill core drilling equipment, mainly applied to geology, hydrology, engineering, metallurgy and coal industries, can also be used for engineering geological exploration drilling construction, mining and tunnel ventilation, drainage and other projects.

Features:

(1) The application of new types of high-strength light alloy materials. The main parts (vertical boxes, moving boxes, hoists and other) material using pressure casting high-strength aluminum alloy to replace ordinary steel research of new aluminum alloy welding technology, integration applied in the Tower, base; on the premise of ensuring drilling rig, which weighs about 1/3.

(2) modular drilling rig solid design, split more fast Assembly. Split each part maximum weight of about 40-100kg, solved the problem of relocation job difficult in mountainous area.

(3) drill transfer machine structure using high-frequency treatment setting Rails, wear-resisting performance, extending its service life.

(4) Composite transmission design. LG515 automobile transmission design of additional Deputy as speed, high and low speed switch, torque, variable speed range, concentrated and convenient operation, meet the needs of drilling technology and accessories General.

Specification

structural style	Spindle
Power(kW)	4TNV88-BSBKC 27.1kW 2200rpm
Dimension(MM)	26009001750
Weight(kg)	700(power not included)
Drilling depth(m)	600
Drilling diameter(Max.)(mm)	219
Kelly bar(mm)	46x51x4200 /Ø50
Drill bit(mm)	Ø75- Ø220
Rotating speed(r/min)	57/157/470/942
Reel caliber (mm)	200
Single line lifting speed(m/s)	0.3-1.9
Single line hoisting capacity(t)	2.5
Wire rope length(m)	50
Wire rope diameter(mm)	Ø12.5
The rated load(t)	3
effective height(m)	6
Tower leg specifications(mm)	Ø73

Weight of components:

Component	Weight(kg)	Quantity
Up shelves and control valve	168	1
Down shelves	100	1
transfer case	98	1
Spindle case	80	1
Spindle & hydraulic chuck	68	1
Winch	85	1
Hydraulic oil tank(oil included)	58	1
Diesel engine	165	1
Diesel tank(diesel included)	40	1
Gearbox	68	1
pulley assembly	36	1
upper bracket	100	1
Left pillar	69	1
Up strut	72	1
Tower	42	2
Down strut	24	2
Tower pole 1	16.5	2
Tower pole 2	15	2
Left chassis frame, right chassis frame	57	2
Chassis Front arm	56	1
Chassis back arm	21	1
