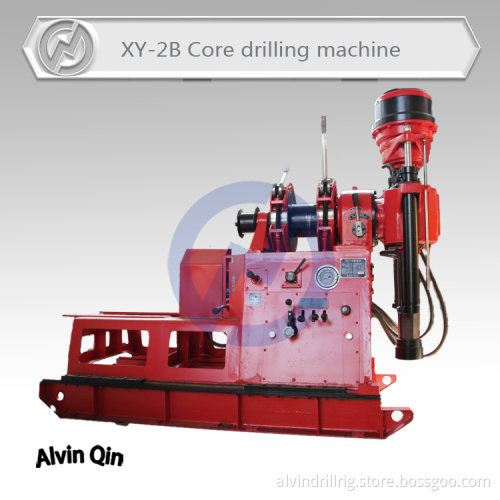

XY-2B core drilling rig ,drill down to 800

Get Latest Price

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 sets per week
Supply Ability:	100 sets per week
Incoterm:	EXW
Certificate:	CE, ISO9001
Transportation:	Ocean

Product Description

XY-2B drillrig derived from xy-2 drillrig, it not only keeps all performances of xy-2 drill, but also adds spindle inner hole diameter to 96mm. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with xy-2 drill in all design but hydraulic chuck and rotary head modified.

Specifaction

Drilling capacity (m)	Φ73 rod	100
	Φ60 rod	320
	Φ50 rod	380
	Φ42 rod	530
Spindle speed(r/min)	Forward	57;99;157;217;270;470;742;1024
Spindle speed(r/min)	Reverse	45;212
Max torque(Nm)		3330
Angle renge		0-90°
Spindle max pull force(KN)		60
Spindle stroke (mm)		560
Hoist max lift capacity with single rope (KN)		30
Spindle inner dia (mm)		Φ96
Oil pump		CBK1020/8 twin-gear pump
Power unit	Electric motor	Y180L-4,22kW
	Diesel engine	395K2,19.85kW
Inner dia of spindle (mm)		2220×900×1880
Drill weight(excluding power)(kg)		1200

Our Services

Ⅰ.Warranty

The main machine has 12-month warranty, excluding the wearing parts, we offer these parts with the lowest price for our customer.

Ⅱ.Installation and Commissioning

A.We provide our customers foundation and layout drawings after payment.

B. If needed, we will send technical engineers to the Buyer`s site for supervision of erection and Commissioning. Expenses abroad should be paid by the buyer.

Ⅲ. Inspection:

A. Customer inspection in factory;

B. Supplier offer pictures for inspection;

C. The third party inspection appointed by Customers.

Packaging & Shipping

Package: Wooden Case or Plywood

Deliverey: Container ship
