Basic Info

Product Description

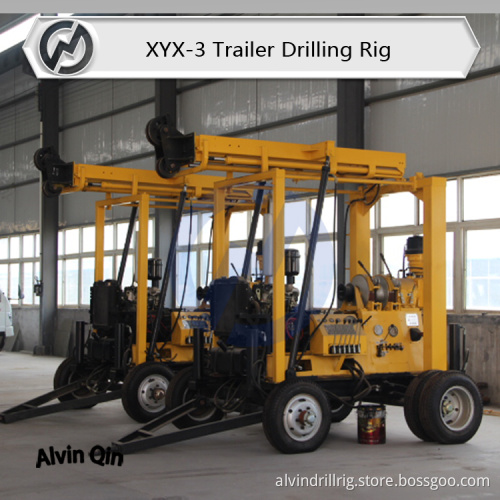

Highly compacted mine drilling machine XYX-3

Widely used in any situation

Best Choice for your projects!!!

Specifaction

Drilling depth	m		100			250		300	600
Drilling DI	mm		300			200		150	75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed				r/min			30-1050
Spindle reverse speed				r/min			29-137
Spindle stroke				mm			560
Spindle inner diameter				mm			96
Spindle lifting capacity				KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed					m/min		0-45
Hug floodgate belt width					mm		90
Tightrope diameter					mm		14
Hoist single line lifting capacity					KN		40
Roller diameter					mm		200
Roller cubic measure					m		30
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure							63mL/r 20Mpa
Behind displacement,pressure							25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp					R4105ZD 50HP
Electric motor		KW					Y180L-4 22KW
