TYB coalescence -separation Used Fuel/ Light Oil Refinery Purification Machine

TYB coalescence -separation Used Fuel/ Light Oil Refinery Purification Machine

Get Latest Price

Payment Type:: T/T, L/C

Incoterm:: CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	500 set/year
Supply Ability:	500 set/year
Payment Type:	T/T,L/C
Incoterm:	CIF
Certificate:	CE, ISO, CCC
Transportation:	Ocean

Product Description

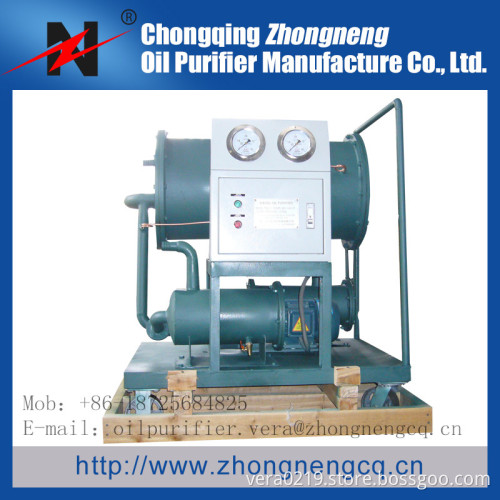

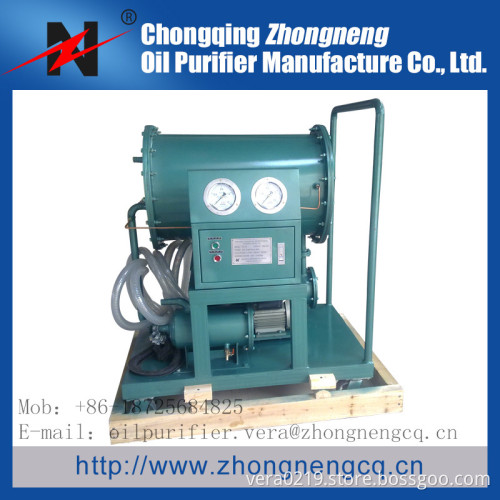

TYB coalescence -separation Used Fuel/ Light Oil Refinery Purification Machine

Function and Purication:

This series adopts the advanced coalescence-Separation filter element and gather fine filter, highly effective demulsification and dehydration into one machine.thia machine is able to remove the lagrge amount of water without any heating, outperforming common oil purifiers by other facotory in dehydration in domestic market. so far. It can quickly separate water from oil, which

even contains half water and attain the cleanness of NAS Grade 6.

Convenient to use with the g0-cart model disgned , this machine is suitable for treating light oil, fuel oil and other combustile oils.

Features:

1. TYB series purifier adopt special oil water separator which requires no heating offering more than 20 times dewatering efficiency over other types of purifiers.

2. High efficiency of removing impurities from the oil.

3. As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.

4. Easy-to-operate, water can be discharged online automatically without the presence of duty operators.

5. Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press

Technical Data:

Parameters	Unit	TYB-10	TYB-20	TYB-30	TYB-50	TYB-80	TYB-100	TYB-200	TYB-300
Flow rate	L/hr	600	1200	1800	3000	4800	6000	12000	18000
Working pressure	MPa	≤0.5
Working Vacuum Degree	MPa	-0.06 ~ - 0.095
Working noise	Db (A)	≤65-75
Running hours without malfunction	H	≥4000
Continuous running hours	H	≥150
Power Supply		380 V A/C, 3 PHASE, 50 Hz (as per required)
Power	KW	0.55	0.55	0.75	1	1.5	1.5	2.2	3
Inlet (outlet) Caliber	mm	25	25	25	32	32	42	50	60
Size	mm	700×570×550	700×570 ×600	700×600 ×650	850×650×750	900×650×750	1000×700×850	1100×750×950	1200×800×1000
Weight	Kg	65	90	105	135	150	185	200	230

Oil Data after Treatment

Moisture (water content)	≤ 80 PPM
Impurities Degree (Filtration precision)	≤ 1 ~ 5 micron
Demulsification	New oil≤15min, running oil≤30min
Cleanliness	≤NAS 1638 Grade
