Basic Info

Place of Origin:	Chongqing,China
Productivity:	500 set/year
Supply Ability:	500 set/year
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE, ISO, CCC
Transportation:	Ocean

Product Description

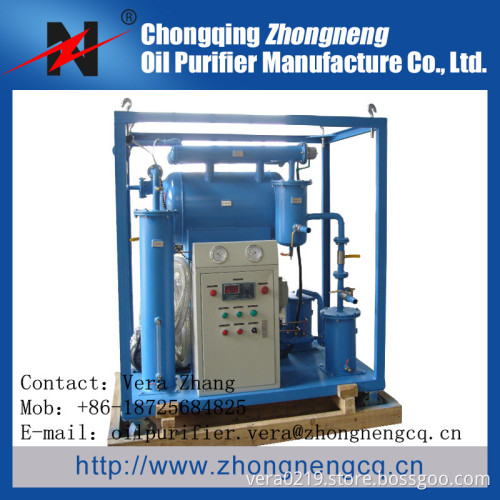

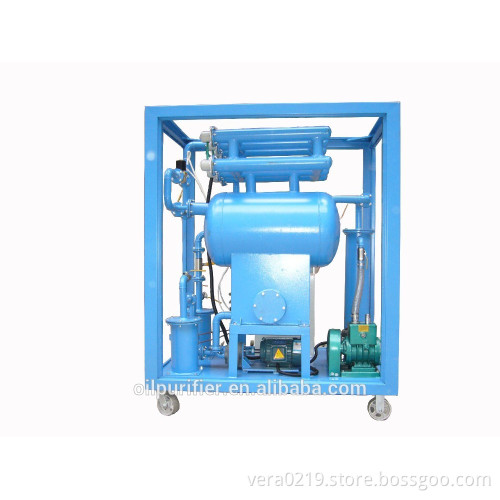

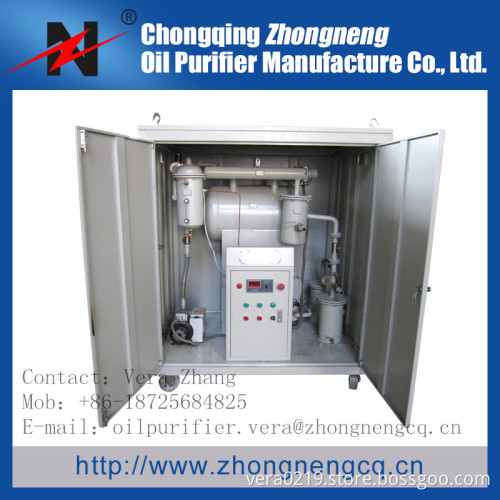

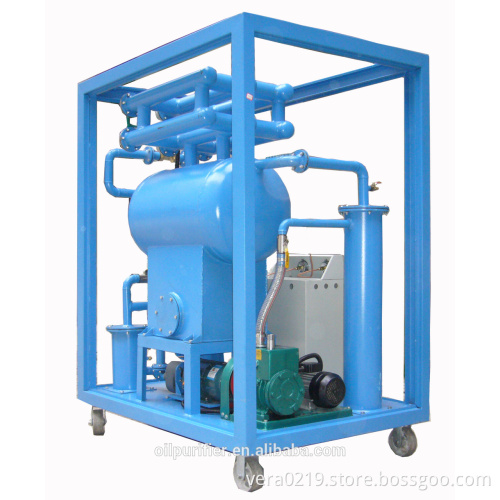

Vacuum Transformer Oil Purifier Plant,cable oil purification plant

Application:

This machine is mainly used to improve the properties of insulating oil. It can remove trace water , gas, particles matters in the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which have insulating system.

Features:

1.Eliminates water, gas and impurities effectively by ultilizing the unique technology of 3D stereo-evaporation, hence improve the voltage withstand strength and the quality of oil, which ensures a safe operation of power generation equipment.

2.It can inject the insulating oil into the transformer devices, and has the function of electrification online operation.

3.Enhance the value of breakdown voltage greatly.

4.Easy handling and maintainace.

5.Adopts infrared liquid control automatically system to control inlet and outlet the oil smoothly.

6.ZY Series equipments can be used for testing insulator withstand voltage and prnt the resut automatically.

7.Low maintanance and replacement expresses.

8.Automatica reverse-washing system will extend the lifetime of filters and improve the performance of the filters.

9.High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.

10.Utilizes coacervation technology, coalescing teconology, seperating tenology and refined purification technology. To remove free, soluble water, carbon, free and

dissolved gas and particulate matters from insulating oil effectively and rapidly.

11.This machine can work independently, also it can work with the oil regeneration system that can eliminate the acid, the color and reduce te Ohvalue effectively, then

further enhance the insulation value of oil.

Technical Parameter

Parameters		Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-70	ZY-150	ZY-200	ZY-300
Flow rate		L/h	600	1200	1800	3000	4200	9000	12000	60000
Working vacuum		MPa	-0.06 ~ -0.095
Working pressure		MPa	0.4	0.4	≤0.4	0.5	0.5	0.5	0.5	0.5
Breakdown voltage		KV	≥55	≥55	≥55	≥60	≥60	≥60	≥60	≥65
Moisture		PPM	≤5
Gas content		%	≤0.1
Impurity content		μ	≤5
Temperature range		℃	10 ~ 80
Power supply			380V, 50HZ, 3PH (or as per request)
Working noise		dB(A)	61	63	70	70	75	70	70	70
Heating power		KW	11	13	15	30	48	52.5	57.5	60
Total power		KW	12.5	14.5	16.5	33.5	51.5	57.5	65.5	68
Inlet/outlet caliber		mm	φ25	φ25	φ25	φ32	φ40	φ50	φ50	φ60
Weight		Kg	150	200	260	300	400	450	550	600
Size	L	mm	1050	1050	1100	1200	1450	1600	1800	1900
	W	mm	750	750	800	950	950	1100	1200	1200
	H	mm	1350	1350	1400	1500	1650	1800

What Oil Can We Process?

We can process insulation oil like transformer oil, mutual inductor oil, switch oil,turbine oil,lube oil,engine oil, gear oil, hydraulic oil, mechanical oil, coolant oil, gear oil, heat treatment oil etc.
