ZYB Insulation Oil Regeneration machine/Transformer Oil Refinery Machine

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	500 set/year
Supply Ability:	500 set/year
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	CE, ISO, CCC
Transportation:	Ocean

Product Description

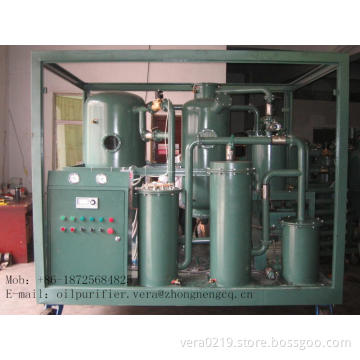

ZYB Insulation Oil Regeneration machine/Transformer Oil Refinery Machine

Why choose us?

1. We are one of the largest manufacturers and exporters of oil purifier in China

2. We have more than 10 years experience

3. We offer our customers high quality products at competitive price

4. We offer our customers excellent after-sales service

5. We are not satisfied until our customers are satisfied!

Application:

This machine is widely used to overhaul and install the electric inuslation equipment which is running as energize such as transformer oil, switch oil, and mutual inductor oil. Especially it is appiled to purify and rehabilitate the seriously degenerated insulation oil.

Features:

1.This machien can degass, dehydrate and clear impurities. Ecept that, it also can recover the used oil by removing the polarity materials such as the deep oxides, free carbon in the oil effectively. it can make the seriously deteriorated oil reach to the normal index like anti-oxides. acid alkawali water-solubility,too.

2. THree ways of use: the vacuum dehydration, degassing and particle removal system. They can work alone. so does the regeneration oil system. And also they can work at the the same time.

Advantage:

this machine can overwelm common oil purifiers manufactured by other companys in oil dehydration, oil degassing and impurty removal. it can also better many values, including the acid value, ph value and so

on. Meanwhile, it improves the voltage-withstand value through filtering the polarity materials like free carbon , deep oxides and so on.

Technical Parameter

Parameters	Unit	ZYB-20	ZYB-30	ZYB-50	ZYB-100	ZYB-150	ZYB-200
Flow rate	L/h	1200	1600	3000	6000	9000	12000
Vacuum degree	Mpa	–0.08~–0.095
PH	≥5.5
acid	0.03mgkoH/g
flash point	145℃
Working pressure	Mpa	≤0.3			≤0.5
Temperature degree	℃	≤90
Working noise	dB(A)	≤68	≤70	≤72	≤75	≤80	≤80
Electric heating power	KW	15	24	25	30	39	45
Total electric power	KW	16	26	28	35	44	50
Inlet (outlet) caliber	mm	25	25	32	42	50	50
Size	mm	1500×900×1550	1600×900×1650	1600×900×1700	1600×950×1700	1600×950×1800	1700×1000×1950
Weight	Kg	300	410	650	800	850	900
