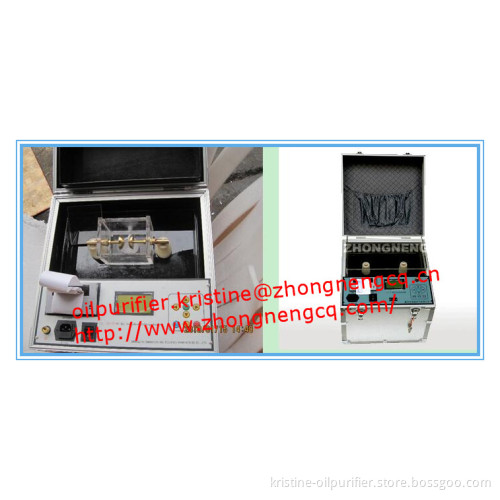

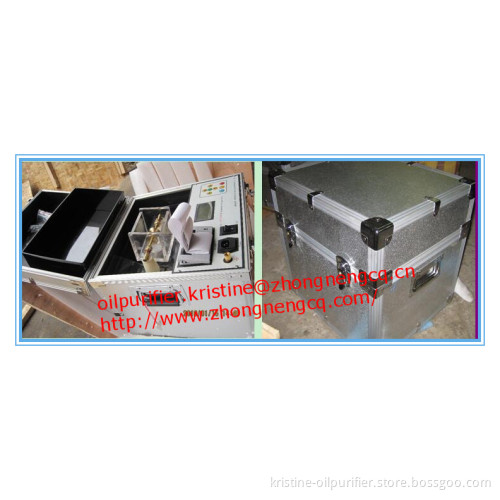

IIJ-II Series Fully Automatic Transformer Oil Tester for 80 KV

Why choose us?
1. We are one of the largest manufacturers & exporters of oil purifier inChina
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied

Introduction

IIJ series fully automatic oil tester is apply to test the insulating oil's dielectric strength, which is designed as per the requirement of IEC156 Testing Method of Insulation Oil Medium Strength, which via proper programming, has got functions of auto boosting, step down, stirring, display and print out. After breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; this effectively safeguards the personnel security and equipment safety.

Technology and parameter data

1. Power Supply: 220 ±10% VAC, 50HZ

2. Output: 60 kV, 80 kV, 90 ~ 100 kV

3. Capacity: 1.2 kVA (for 60kV), 1.6 kVA (for 80 kV), 2.0 kVA (for 100 kV)

4. Pressure increase rate: About 2 KVA/S

5. Pressure testing speed: 3%

6. Break down sensitivity : <2KV

7. Wave form distortion: ≤3%

8. Time of break down: ≤10ms

9. Working environment: temperature: 0 to40℃,

humidity: < 85% (Relative Humidity)

10. Storage environment: temperature: -20 to60 ℃, humidity: < 75% (Relative Humidity)

11. Working Altitude: < 1500 meters. (If over1500m, it can be customized)

12. Test cell: Glass, volume 300 to 500 ml, with protective cover and stirrer.

13. Electrodes: Stainless steel spherical36 mm diameter/hemispherical25 mmradius,2.5 mmgap as per IEC-156.

14. Initial stand time of oil sample: 180 seconds

Intermediate stand time of oil sample: 60 seconds

String time of oil sample: 60 seconds

Number of consecutive test: 6

15. Dimension & Weight:

Before packed: 380 × 370 ×380 mm

Net Weight: 40 KGS

After packed: 480 × 470 ×465 mm

Gross Weight: 50 KGS

We also provide below products, please feel free to contact us to get more details, thanks.

KristineYi_oilpurifier(at)outlook.com
oilpurifier.kristine(at)zhongnengcq.cn

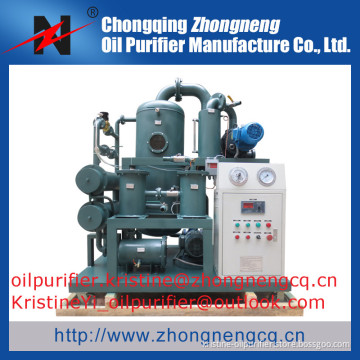

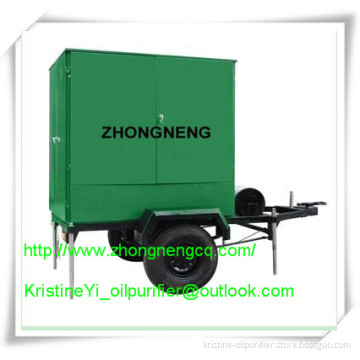

1. Transformer Oil Purifier

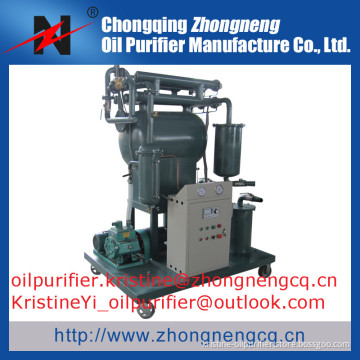

2. Insulation Oil Filtration

3. Transformer evacuation System

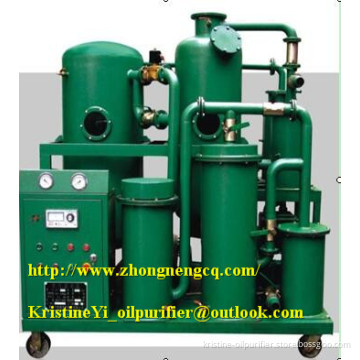

4. Lubricating Oil Purifier

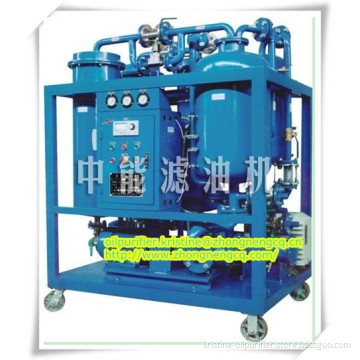

5. Turbine Oil Purifier
