Hot Sale used insulation oil/ transformer oil/mutual inductor vacuum oil purifier

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000
Supply Ability:	strong
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	ISO,CE,CCC,SGS
Transportation:	Ocean

Product Description

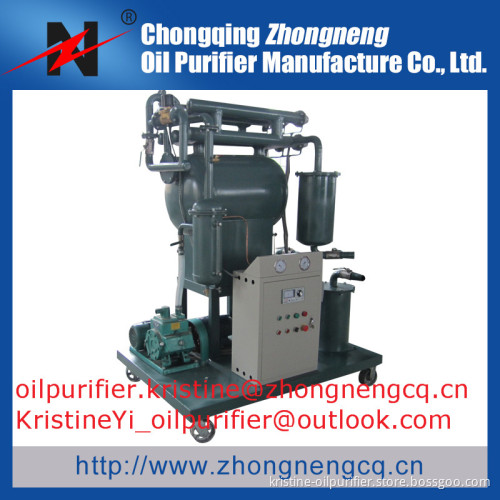

Hot Sale used insulation oil/ transformer oil/mutual inductor vacuum oil purifier

Application:

it is applied to process all sorts of used insulation oil, including aging transformer oil,mutual inductor oil, switch oil and so on.

Advantages:

This freshly-developed high efficient oil purifier adopts Duplex 3D stereo-evaporation technology and G technology. With the technology, it can remove the impurities through FH trapezoidal network and absorbs by high polymer without mechanical power. It is five to eight times as efficient as common vacuum oil purifiers. It is of low energy consumption and needs no other wearing materials.

Feature:

1.Bi-infrared liquid duplex 3D stereo-evaporation technology, dehydrating and degassing effectively

2. Unique impurity removing technology of filtering through double FH trapezoidal networks and absorbing by high polymer without the mechanical power.

3.Bi-infrared liquid level automatic controller system.

4.Trinity interlocked Preventive device

5. It can work individually. it also can work with the oil regeneration system.

6. It can work as the vacuum oilling machine or vacuum drying machine to the power equipment for example, transformer

7.Automatic testing oil dielectric strength and printing out the result.

8. It can work on line.

Technical Data

Parameters		Unit	ZYA-10	ZYA-20	ZYA-30	ZYA-50	ZYA-100	ZYA-150	ZYA-200	ZYA-300
Flow rate		L/h	600	1200	1800	3000	6000	9000	12000	18000
Working vacuum		MPa	-0.06 ~ -0.095
Working pressure		MPa	0.4	0.4	≤0.4	0.5	0.5	0.5	0.5	0.5
Breakdown voltage		KV	≥55	≥55	≥55	≥60	≥60	≥60	≥60	≥65
Moisture		PPM	≤5
Gas content		%	≤0.1
Impurity content		μ	≤5
Temperature range		℃	10 ~ 80
Power supply			380V, 50HZ, 3PH (or as per request)
Working noise		dB(A)	61	63	70	70	75	70	70	70
Heating power		KW	11	13	15	30	48	52.5	57.5	60
Total power		KW	12.5	14.5	16.5	33.5	51.5	57.5	65.5	68
Inlet/outlet caliber		mm	φ25	φ25	φ25	φ32	φ42	φ50	φ50	φ60
Weight		Kg	150	200	260	300	400	450	550	600
Size	L	mm	1050	1050	1100	1200	1450	1600	1800	1900
	W	mm	750	750	800	950	950	1100	1200	1200
	H	mm	1350	1350	1400	1500	1650	1800	1900	1900

We also provide various kinds of oil purifier/oil filter/oil recycle machine, please contact us for more product information, thanks.

Hope we can establish long-term cooperative relationship.
