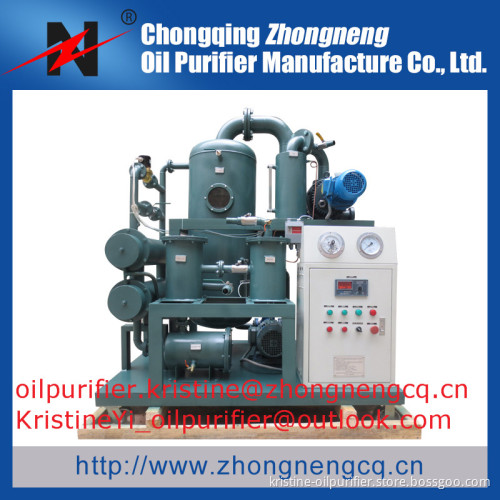

Used Insulation oil/ Transformer oil/ double Step Vacuum Oil Regneration Machine

Why have to choose US ?

1. Having been involved in this field for more than 18 years, we are skilled at manufacuturing all

sorts of oil purifiers.

2. We have a large team of exprienced engineers so that the excellent-quality product could be offered

3. As leading maufatureer of this field in, we provide the most statisfying after-sale service!

Application:

it is mainly used for purifying the insulation oil in all kinds of large power equipment, whose voltage is above 110KV especially for those 500-meter-high areas.

Feature:

1. high vacuum: Ultimate vacuum>/=5pa Working vacuum</=35pa

2. High Absorption Speed: Absorption Speed power>/=333L/s

3. Duplex 3D stereo-evaporation, dehydrating fast

4. Uk G technology by which the short-chained trace ,for example ,dissolved water can be effectively removed.

5. The Unique impurity-removing system filtering through double FH trapezoidal network and absorbing by high polymer without mechanical power.

6. Especially applied to vacuum oiling and drying machine for power equipment transmission equipments over 110KV

7. can be operation on-load and off-load

Advatages:

Compared with the single-stage vacuum oil purifier, this machine dewaters, degases and removes impurities more quickly and completely, and lifts the oil's limiting voltage-withstand value to a higher stage. AS the bridige-type vacuum linking system, it is used as filtrating system and independent vacuum power supply to vacuum oiling of power equipment.

Technical Parameter

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow		L/h	1800	3000	6000	9000	12000	15000	18000
Working vacuum		MPa	-0.08 ~ -0.099
Working Pressure		MPa	≤0.3
Breakdown Voltage		KV	≥65
Water Content		PPM	≤5
Gas Content		%	≤0.1
Impurity Size		μ	≤5
Temperature Range		℃	20 ~ 80
Power			Three Phase 50HZ380V(as per the customer`s requirements)
Working Noise		dB(A)	75	75	75	80	80	80	80
Heating Power		KW	30	30	45	60	75	90	120
Total Power		KW	35.5	37.5	52.5	71.4	86.5	102.5	135
Inlet/Outlet		mm	25	32	42	50	50	60	60
Weight		Kg	600	800	1050	1400	1800	2000	2200
Overall	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900

We also provide various kinds of oil purifier/oil filter/oil recycle machine, please contact us for more product information, thanks.

Hope we can establish long-term cooperative relationship.
