JY-765 china manufactures high quality telescopic retractable bleacher for sale retractable bleacher

PRODUCT DESCRIPTION

Product Name

retractable bleacher

Model No.

JY-765

General Use

Auditorium, Theatre, Cinema, School, Retractable grandstand ,School, TV Station Showroom , Stadium, race court, etc. used theater seats

Color

Optional

Specifications

1. Retractable Seats with soft chair, floor mounted system.
2. The guardrail on the two sides is made round bar with surface galvanized and powder coated.

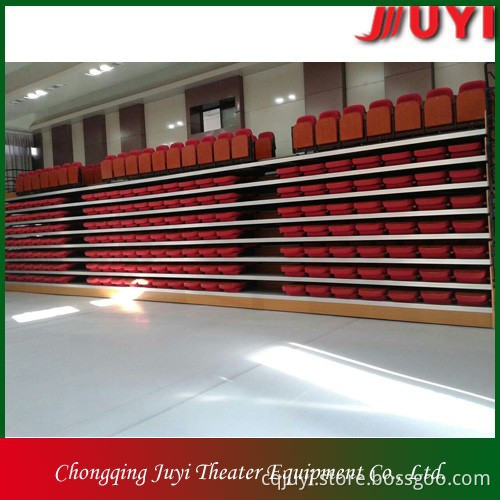

3. Special design, it turns to be a ladder after pull out, and superposed after push in. It can improve the using rate of the space.
4. The platform adopts the high-quality steel while the front edge adopts the duralumin.
5. Motor-driven and manual operation could be chosen.
6. Step material: 18mm thick strong plywood.
7. Step frame and structure: strong aluminum frame, European (Germany) quality.
8. Supporting structure: strong steel tube with power coating.
9. Lower backrest, Medium backrest and higher backrest can be chosen.
10. Cushion seat and plastic seat are optional.
11. Chair with armrest.
12. Foldable chair, foldable seat.

Parameter

1. Walk speed:75mm/s
2. Fixed position:±10mm
3. Power of motor:0.37kw
4. Power source:AC 380V 50HZ
5. Width of each row board:900mm
6. Loading pressure:300kg/M2
7. Loading of wheel:≥250kg/pc

Packaging Details

CKD in carton,120pcs/20GP 300pcs /40HQ

MOQ

100pcs

Delivery Time

25-30 Days

Output

5000 pcs/Month

Loading Port

Chongqing

Payment

T/T L/C
