JY-780 factory price fabric seat cheapest telescope gym bleachers telescope

PRODUCT PARAMETER

Brand

JUYI

Type

Model No.

JY-780

Place of Origin

Chongqing

Chair Size

870mm*700mm*530mm

Customized or not

Yes

General Use

Auditorium, Theatre, Cinema,School,  Retractable grandstand ,TV Station Showroom , Stadium, race court, etc.

Description

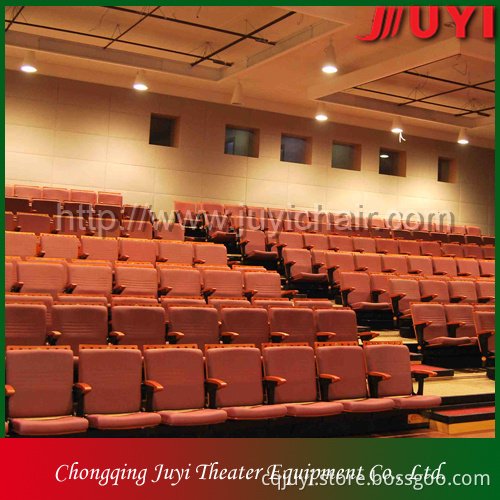

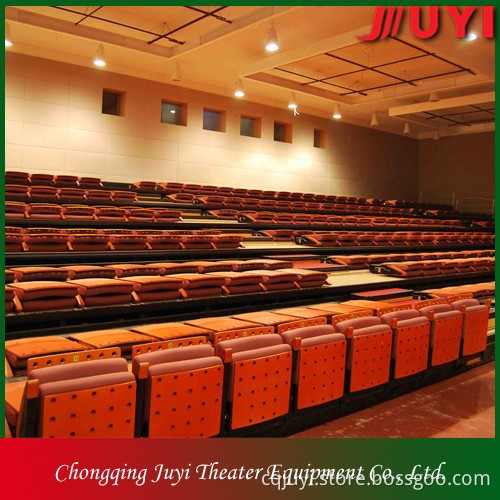

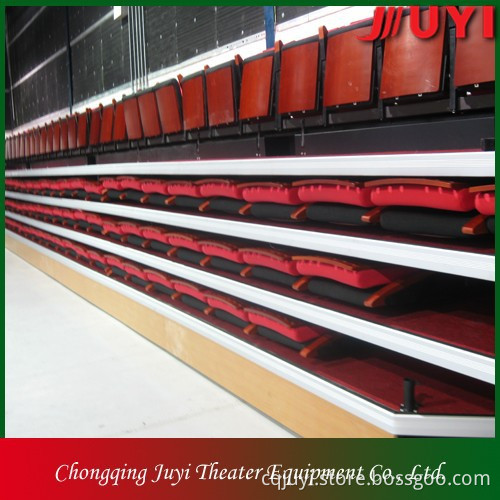

1. Telescopic grandstand platform with soft chair, floor mounted system.
2. The understructure is made by welded angle bar with surface hot-galvanized.
3. The handrail on the two sides is made round bar with surface galvanized and powder coated.
4. Special design, it turns to be a ladder after pull out, and superposed after push in. It can improve the using rate of the space.
5. The platform adopts the high-quality steel while the front edge adopts the duralumin.
6. Motor-driven and manual operation could be chosen.
7. When the platform open or close, chairs will automatically fold down and up.
8. When people sit or stand up, chairs will be ajar or closed.
9. Seat center is 520mm
10. seat number and row plate
11. Seat and backrest are covered with fabric fully.
12. Walk speed:100mm/s
    Fixed position:±10mm
    Power of motor:0.37kw
    Power source:AC 380V 50HZ
    Width of each row board:900mm
    Loading pressure:300kg/M2
    Loading of wheel:≥250kg/pc

Packaging Details

CKD in carton, 120pcs/20GP 300pcs /40HQ

MOQ

500sets

Delivery Time

20-30 days after we received deposit payment

Output

5000sets/Month

Loading Port

Chongqing

Payment

T/T L/C
