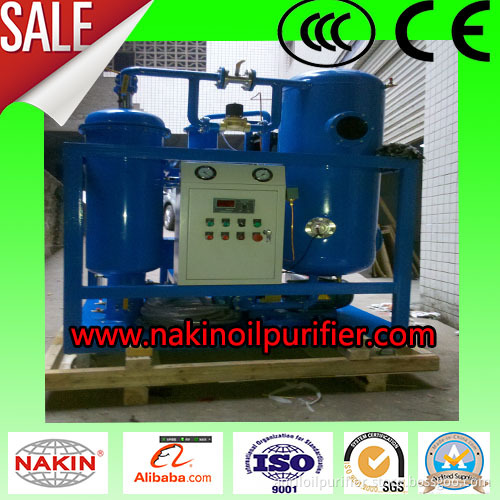

Series TY online turbine oil purifier,oil reclaim
- Payment Type:
- T/T, L/C, D/A, D/P
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 1000 sets per year |
| Supply Ability: | 1000 sets per year |
| Payment Type: | T/T,L/C,D/A,D/P |
| Incoterm: | FOB |
| Certificate: | ISO9001,CE |
| Transportation: | Ocean,Land,Air |
Application:
Turbine oil is widely applied in industries, TY vacuum turbine oil purifier is mainly used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently demulsify, separate water, gas, particles from oil, make sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use the special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.
Features:
1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.
Technical Parameters:
|
Index Name |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
|||||||
|
Working pressure |
MPa |
≤ 0.4 |
|||||||
|
Temperature range |
C |
20 ~80 |
|||||||
|
Demulsifying value |
min |
≤ 15/min(GB/F7035) |
|||||||
|
Water content |
ppm |
≤ 80 |
|||||||
|
Gas content |
% |
≤ 0.1 |
|||||||
|
Cleanness |
|
≤ NAS 6 grade |
|||||||
|
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
|||||||
|
Working noise |
dB(A) |
≤65~80 |
|||||||
|
Heating power |
Kw |
24 |
24 |
24 |
30 |
45 |
60 |
72 |
84 |
|
Total power |
Kw |
27 |
27 |
27 |
33 |
48 |
66 |
81 |
97 |
|
Inlet(Outlet) |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Weight |
kg |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
Company information:
Chongqing Nakin oil purifier Manufacture Co.,Ltd is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.
Our Main Series Products as following:
ZY-Single stage vacuum transformer oil purifier/oil filtration machine
ZYD-Double stages vacuum Transformer oil purifier/oil filtration machine
ZYM-Mobile type transformer oil purifier/oil filtration machine
AD-Air drying machine
TY-Vacuum Turbine oil purifier/oil filtration machine
TJ-Coalescence–Separating oil purifier/oil filtration machine
TYA-Vacuum Lubricating oil purifier/oil filtration machine
CXJ-Centrifugal oily water separating machine
JZS-Waste Engine oil regeneration machine
JZC-Black waste oil distillation system
ZYS-On-load Tap Changer Oil Purifier
BZ-Transformer oil regeneration device
PF-Press paper oil filtration machine
JL-Portable oil oil purifier/oil filtration unit
BDV Dielectric oil`s breakdown voltage tester
NKEE-Transformer oil/lube oil moisture sensor
Oil purifier parts and various oil testing equipments (Oil Acid tester, oil viscosity tester)
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
