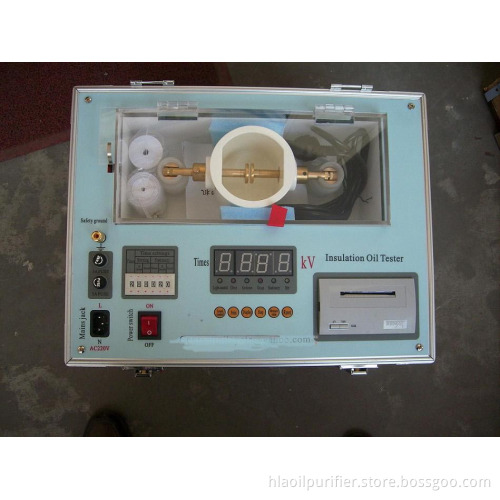

Transformer Oil Dielectric Strength Tester

Application:

ZJY automatic dielectric oil breakdown voltage tester is developed especially for measurement of insulating oil's breakdown voltage, it is unique in the market due to its functionality and the excellent user benefits in comparison to costs. The ZJY dielectric oil breakdown voltage tester provides delivers clear and reliable measurement results. It is no longer necessary to send samples to the laboratory. Environmental and transport influence on the samples are minimized.

Technology and parameter data of oil tester:

1.Power supply: AC220V ±10%, 50 HZ

2.Voltage output:0-80KV / 100K

3.Accuracy: ±2%

4.Capacity:1.6KVA, 2.0KVA

5.Pressure increase rate : About 2 KVA/S

6.Pressure testing speed: 2%

7.Break down sensitivity : <2KV

8.Wave form distortion :≤3%

9.Time of breakdown: ≤10ms
