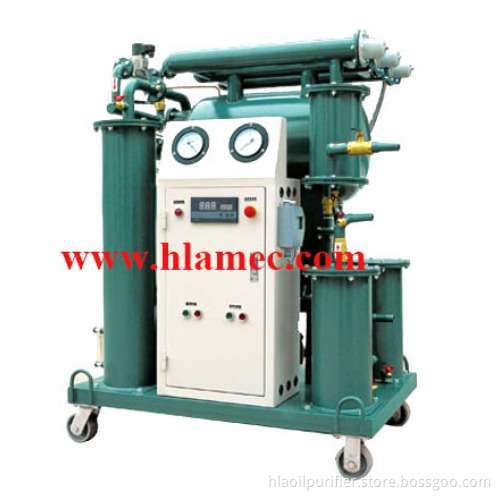

Hi-Vac Insulating Oil Purifier

SVP double stages vacuum insulating oil purifier is designed and built as user friendly high vacuum oil purification system for every applications. It uses advanced and unique technology, double stages horizontal vacuum towers, which speed up the dewatering and degassing more quickly and completely than normal type. After treatment by DVP double stages high vacuum insulating oil purifier, the water content can reach 3ppm, gas content can reach 0.1% and 95% impurities more than 1 micron can be removed.

Features:
1.Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.
2. It can be widely used for oil filling for transformers and circuit breakers under vacuum condition.
3. Precise filtration system, high-quality filter elements, multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
4. An advanced fully automatic temperature controlling system, liquid-level controlling system, pressure protecting system etc.
