Used cooking oil filtration, oil treatment
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 1000 sets per year |
| Supply Ability: | 1000 sets per year |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Certificate: | ISO9001,CE |
| Transportation: | Ocean,Air |
Application:

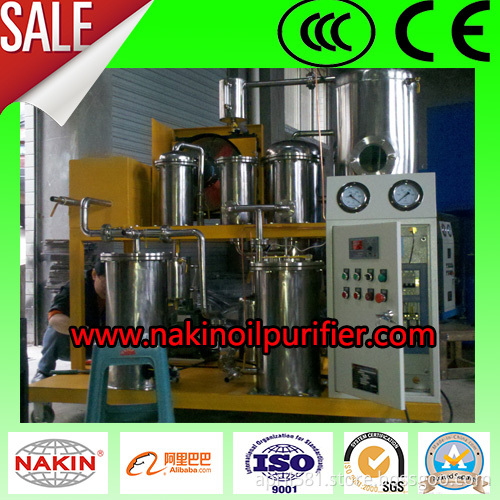

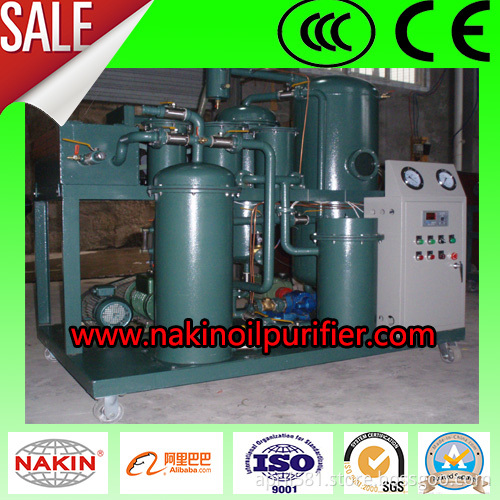

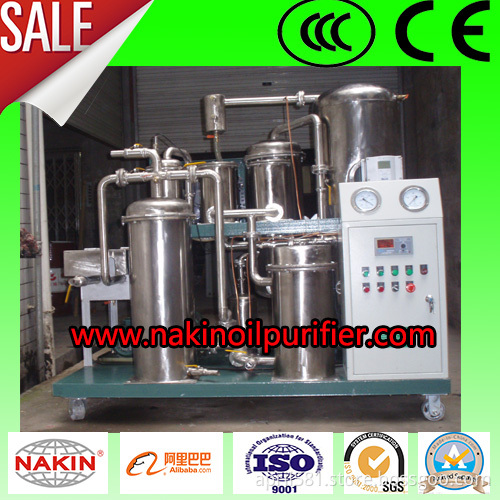

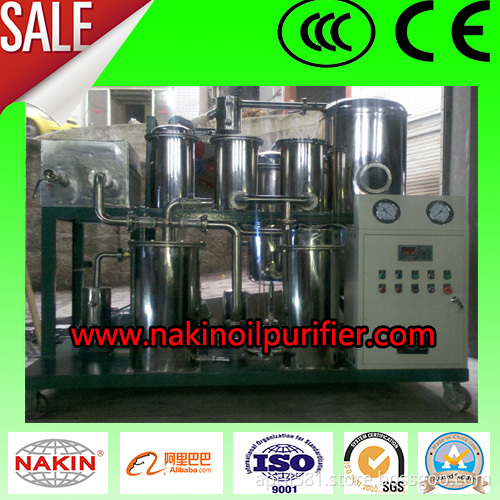

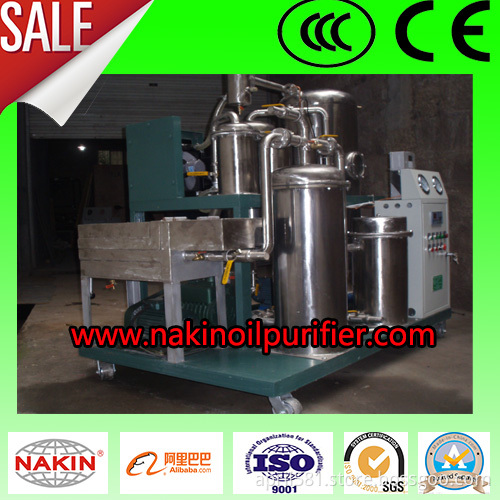

TPF oil filtration machine is special for filtering waste cooking oil, dirty vegetable oil, trench oil, swill oil and animal oil etc., it effectively and completely removes particles, odor, water, acid and alcohol etc. from waste oil. The treated oil is clean, limpidity, and good smell. TPF is a good purification machine for Fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store. According to the treated oil usages, we can choose different machine body. For edible usage, we suggest to choose stainless steel body; for industrial, we suggest to choose carbon steel body. According to different working place, we recommend Skid type and mobile type (Trailer with pneumatic tyre)
Machine Features:
1. TPF is composed of vacuum filtration system and pressure filtering system. Vacuum filtration system equips three grades filters, all of mesh filters are made of stainless steel, which make sure anti-corrosion and reliable. Pressing filtering system uses filter paper or filter bag as filter-media, making sure filter size is less than 1 micron.
2.TPF vacuum filtration system adopts the vacuum vaporizing technology to remove water, odor, alcohol and volatilization materials to Inhibit acid value and peroxide value increases.
3.High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
4.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5.Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters:
|
Parameters |
Unit |
TPF -10 |
TPF -30 |
TPF -50 |
TPF -100 |
|
Flow rate |
L/H |
600 |
1800 |
3000 |
6000 |
|
Vacuum degree |
Mpa |
-0.06 ~- 0.095 |
|||
|
Working pressure |
Mpa |
≤0.4 |
|||
|
Working Temperature |
C |
0~80 |
|||
|
Clean Degree |
NAS |
6 Grade |
|||
|
Impurity Size |
μm |
1 |
|||
|
Gas Content |
% |
0.1 |
|||
|
Acid Value |
mgKOH/g |
≤0.05 |
|||
|
Water content |
PPM |
≤10 |
|||
|
Working noise |
dB(A) |
≤75 |
|||
|
Electric heating power |
KW |
36 |
55 |
72 |
84 |
Company information:
NKIN Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries. Our products list as following:

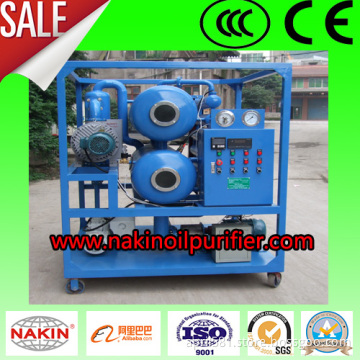

High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration machine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
