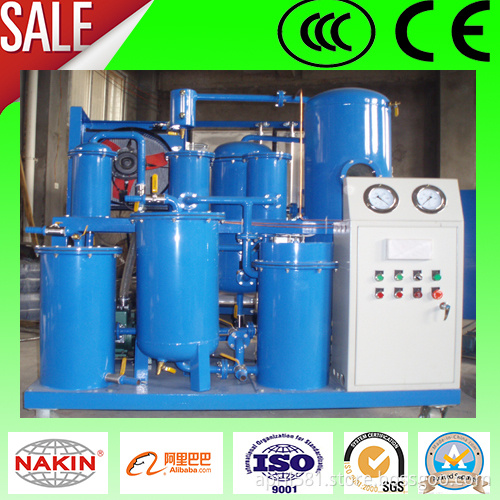

High vacuum lubricant oil filtration, oil filtering machine

High vacuum lubricant oil filtration, oil filtering machine

Get Latest Price

Payment Type:: T/T, L/C

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	1000 sets per year
Supply Ability:	1000 sets per year
Payment Type:	T/T,L/C
Incoterm:	FOB
Certificate:	ISO9001,CE
Transportation:	Ocean,Air

Product Description

Application:

Thousands ton dirty, waste lube oil need to purify per day. TYA Lubricant oil filtration machine is widely applied in industries; which is special for purifying unqualified, waste, dirty lubricant oil, hydraulic oil, compressor oil, refrigeration oil etc. it can effectively demulsify waste oil, separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil`s performance, like the performance, flash point etc. Treated oil can reuse again in various industrial equipments.

Features:

1. Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.

2. Special polymer materials as filter medium with the functions of demulsifying, dewatering, removing particles

3.Oil film sprayer and evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas and volatile matter (such as alcohol, gasoline, ammonia, etc.)

4. Automatic backwashing system, improving working efficiency

5. Advanced medium cooling system

6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.

7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

Technical Parameters:

Index name	Unit	TYA-10	TYA-20	TYA-30	TYA-50	TYA-100	TYA-150	TYA-200	TYA-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000	18000
Working vacuum	MPa	-0.06 to -0.095
Working pressure	MPa	≤ 0.4
Temperature range	C	20 to 80
Demulsifying value	min	≤15/min(GB/F7035)
Water content	ppm	≤100
Gas content	%	≤ 0.1
Cleanness		≤ NAS 6 grade
Power supply		380V 50HZ 3Ph (As per user's option)
Working noise	dB(A)	≤65 to 80
Heating power	Kw	24	24	30	40	60	90	145	160
Total power	Kw	27	27	33.5	44	65	97	157	178
Inlet(Outlet)	mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50	Φ60
Weight	kg	350	380	400	450	750	880	1100	1300

Company information:

NKIN Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries. Our products list as following:

High effective vacuum transformer oil purifier, oil filtration

Double stages insulating oil purifier,oil treatment,oil purification

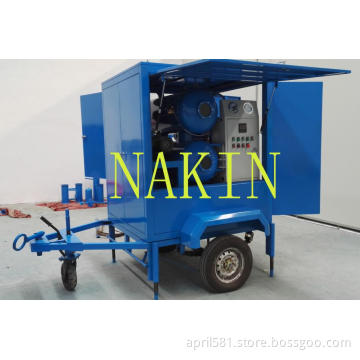

Mobile/trailer type transformer oil treatment,oil filtration machine

Air dryer for dring electric equipments

Turbine oil purifier,oil treatment

Coalescence and separating oil filter,oil purifier machine

Lubricating oil purifier/hydraulic oil purification

Phosphate ester fire-resistant oil purifier, oil filtration machine

Engine oil regeneration system, waste oil recycling

Transformer oil regeneration device,oil pruifier

Plate pressure oil filter, oil purifier machine

Portable oil piurifier,oil filtering,oil filter
