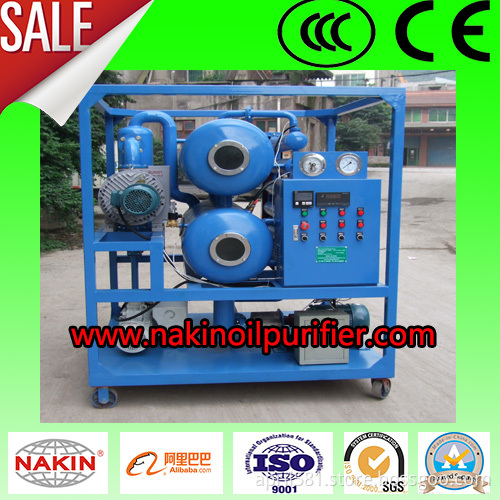

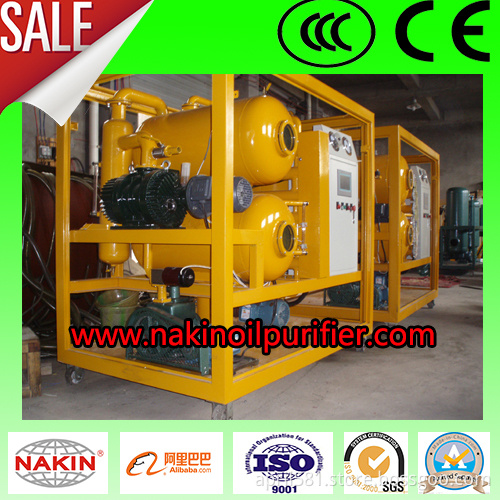

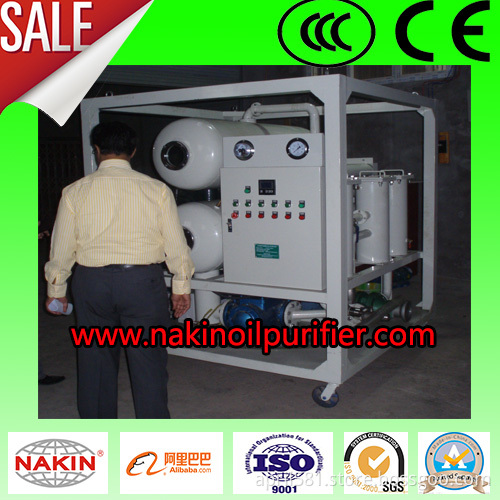

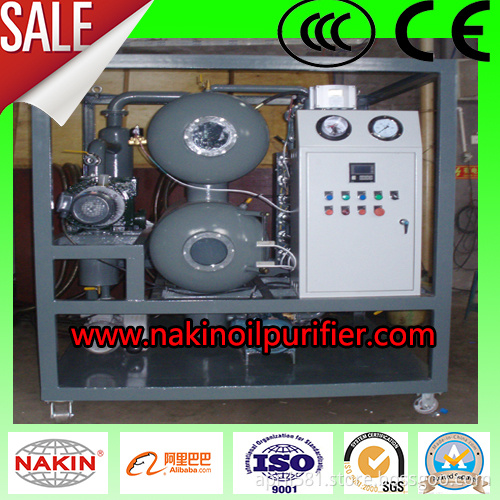

Series ZYD vacuum transformer oil purifier with double stages

Application:

ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features:

1. Pre-Electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards.

2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa

3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

5.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil.

7. Double protecting system, Gas-water separator equips liquid level protector to prevent oil escape from vacuum pump

8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump

9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime

10. Completely Intelligent pressure protector to protect oil pump and fine filter

11. Completely Intelligent vacuum controller to protect the booster pump

12. Fully intelligent temperature controller to prevent the large surge current

13. Phases protector, voltage overload protector to achieve unattended

Technical parameters:
