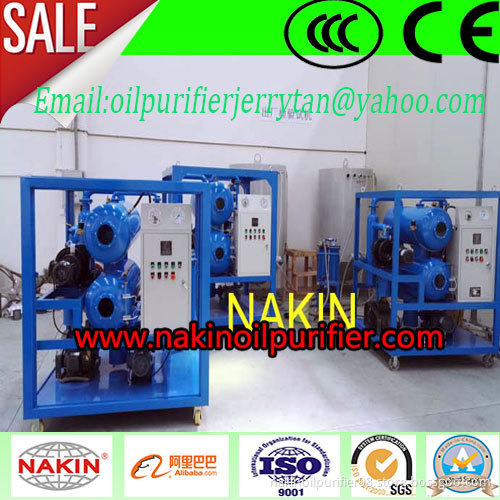

Double Stages High Efficiency Transformer Oil Purifier, Vacuum Oil Filtration Machine

Double Stages High Efficiency Transformer Oil Purifier, Vacuum Oil Filtration Machine

Applicaiton:

ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. Insulating oil performance mainly decided by oils water content, If the water is not saturation in the oil, it appears as the molecular states; If water is saturation in the oil, it appears as the liquid states and stay at the bottom of container. Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump. The higher vacuum value (Close to 0 Pa), the higher speed of water molecular volatilization (The latest technology, the Vacuum oil purifier can reach to 1Pa Working vacuum value). The gas and water which dissolved in the oil will become gaseity and exhausted by vacuum pump. The oil temperature affect vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular. But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad. So we don`t suggest the oil temperature excess 80C. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.

Features:

1. Pre-Electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards.

2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa

3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

5.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil.

7. Double protecting system, Gas-water separator equips liquid level protector to prevent oil escape from vacuum pump

8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump

9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime

10. Completely Intelligent pressure protector to protect oil pump and fine filter

11. Completely Intelligent vacuum controller to protect the booster pump

12. Fully intelligent temperature controller to prevent the large surge current

13. Phases protector, voltage overload protector to achieve unattended

Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries. Our products list as following:

High effective vacuum transformer oil purifier, oil filtration

Double stages insulating oil purifier,oil treatment,oil purification

Mobile/trailer type transformer oil treatment,oil filtration mnachine

Air dryer for dring electric equipments

Turbine oil purifier,oil treatment

Coalescence and separating oil filter,oil purifier machine

Lubricating oil purifier/hydraulic oil purification

Phosphate ester fire-resistant oil purifier, oil filtration machine

Engine oil regeneration system, waste oil recycling

Transformer oil regeneration device,oil pruifier

Plate pressure oil filter, oil purifier machine

Portable oil piurifier,oil filtering,oil filter

BDV oil tester,insulating oil dielectric strength tester

Oil moisture sensor,water content tester
