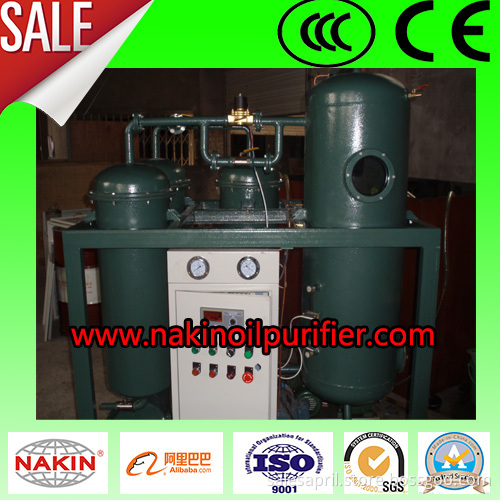

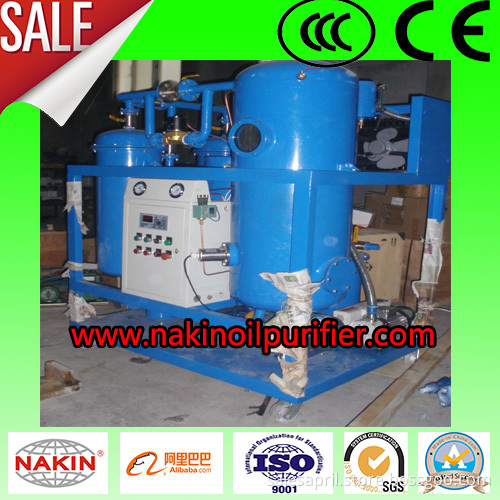

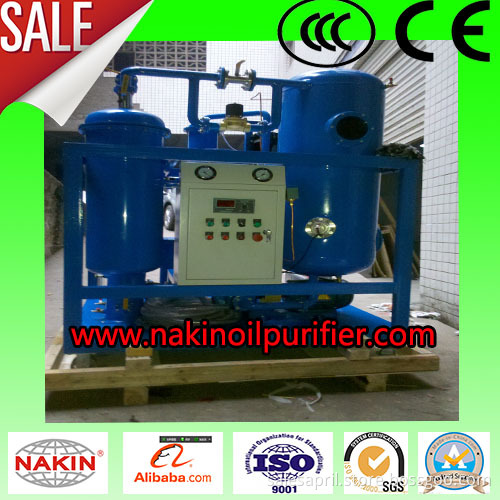

Series TY vacuum online-turbine oil treatment oil purifier

Application:

Turbine oil is widely applied in industries, TY vacuum turbine oil purifier is mainly used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently demulsify, separate water, gas, particles from oil, make sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use the special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.

Features:

1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles

2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.

4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

7. Work online with stream turbine, hydraulic turbine.

Technical Parameters:
