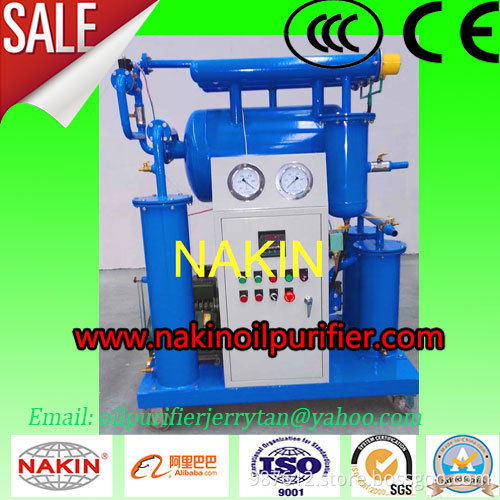

NAKIN ZY Single Stage Vacuum Transformer Oil Purifier, Oil Purification Machine
Application:
Vacuum transformer oil purifier machine is popular in electric power industries, this machine mainly purify and recover old insulating oil, like the transformer oil, mutual inductor oil, cable oil, and switch oils. For the insulating oil, the trace water and gas badly effect insulating oil dielectric strength, it is a good job to remove the trace water and gas completely and effectively. Vacuum distillation way is best way to remove trace water and gas, the treated oil moisture can reach to 3 ppm, gas content is 0.01%. ZY single stage vacuum transformer oil purifier. It is low price, and good working performance. It is very good for middle/low grade transformer oil purifying working. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.
Features:
1. Low cost and easy operation.
2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to decolorize (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
Main Technical Parameters:
Index
name
Unit
ZY-30
Flow
rate
L/H
1800
Working
vacuum
MPa
-0.06~-0.095
Working
pressure
MPa
<
0.4
Temperature
range
C
20
-80
Dielectric
strength
KV
>
65
Water
Content
ppm
<
5
Gas
content
%
<
0.1
Particles
size
mm
<
3
Power
supplier
380v
50Hz,3Ph (As per user's option)
Working
noise
dB(A)
≤
65-85
Heating
power
Kw
15
Total
power
Kw
16.5
Company Information:
Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries. Our products list as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
