80kV Transformer Oil Dielectric Strength Testing Device (GDYJ-502A)

USD1

≥1 Set/Sets

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 9 Days

Transportation:: Ocean, Land, Air

Port:: Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 Set/Sets per Month
Supply Ability:	300 Set/Sets per Month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram
Incoterm:	FOB
Certificate:	CE
Transportation:	Ocean,Land,Air
Port:	Chongqing

Product Description

Introduction

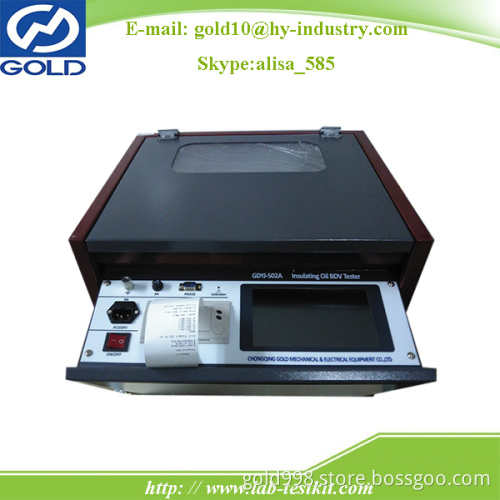

GDYJ-502A Oil Breakdown Tester is improved on basis of GDYJ-502 Insulation Oil Dielectric Strength Tester.
GDYJ-502A Oil Breakdown Tester increases temperature measurement.

All the selection can be done by Touch Pad with Color LCD.

Specifications

1. Voltage OEM for clients
2. AC220V±10% power supply input
3. Output voltage:AC 0V~100KV
4. Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
5. Max test times: 9
6. Init wait times:0~999s
7. Stir time: 0~999s
8. Wait time: 0~999s
9. Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV
10. Temperature measurement:
11.Measurement range : 0°C to 70°C, or better
12.Temperature resolution : 1°C, or better
13.Operating temperature : up to 45°C
14. Storage:100 groups
15. 7 inch colorful LCD with touch pad
16. Oil test vessel temperature measurement unit
17. All the selection can be done by touch panel with color LCD
