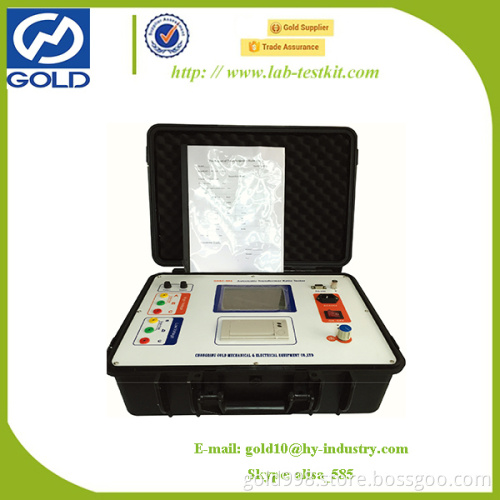

TTR Meter / Single Or 3-Phase Transformer Turn Ratio Tester / Turn Ratio Meter (GDBC-901)
-
USD1≥1 Set/Sets
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Chongqing
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Productivity: | 300 Set/Sets per Month |
| Supply Ability: | 300 Set/Sets per Month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air |
| Port: | Chongqing |
1. The voltage ratio measurement for three or singe phase transformer
2. The group vector measurement for three phase transformer.
3. The polarity measurement for single phase transformer or CT/PT
4. Voltage ratio error calculation
5. Current transformer ratio measurement
6. Excitation current measurement in ratio testing
7. Reproduction the AC test voltage from power source to reduce the effects of bad power source
8. Save the test results in the memory internal the tester
9. Print the test results by micro printer
10. Reverse connection detect unit to prevent the high voltage injected to operator
11. Over current protection unit integrated in software and hardware
12. Upload the test results to PC by RS232 and make word report by software
|
Ratio measurement range
|
1~10000
|
|
Group measurement
|
1~12
|
|
Phase measurement error
|
1 degree
|
|
|
1~2000 ± 0.2%RDG
|
|
2000~10000 ± 0.5%RDG
|
|
|
Test voltage
|
0~80V
|
|
Power supply
|
AC220V ± 10%, 50Hz/60Hz
|
|
Size
|
400´350´200 mm3
|
|
Weight 7kg Humidity
|
≤85%RH
|
