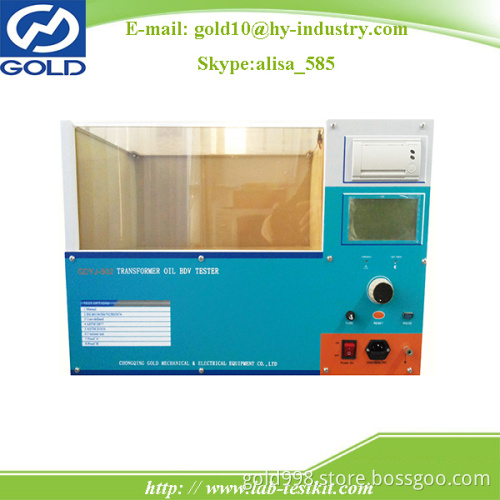

BDV Tester with Factory Price (GDYJ-502)

USD1

≥1 Set/Sets

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Productivity:	300 Set/Sets per Month
Supply Ability:	300 Set/Sets per Month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE
Transportation:	Ocean,Land,Air
Port:	Chongqing

Product Description

Introduction

1. It is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method .

2. LCD screen can display test pr℃edure and test result.

3. All the human interaction operations complete by the rotating mouse .

4. It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-502 Oil Breakdown Voltage Tester.

5. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing.

6. The special circuit design makes the tester has a good performance at stability and anti-noise.

Features

1. Breakdown test of user-defined

2. Proof test

3. IEC156/IS6792/BS5874 / ASTM D1816 / ASTM D877 standard test

4. 5 minutes standard test

5. Manual test

6. Calibration interface for customers

7. Unloading data to PC and making word report automatically

8. Result print.

Specifications

Power Supply	AC220V
Output voltage	AC 0V~100KV
Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
Max test times	9
Stir time	0~999s
Wait time	0~999s
Test error	3% max in the range of 10kv~100kv
Weight	41kg
Size	630 mm400mm3000mm
