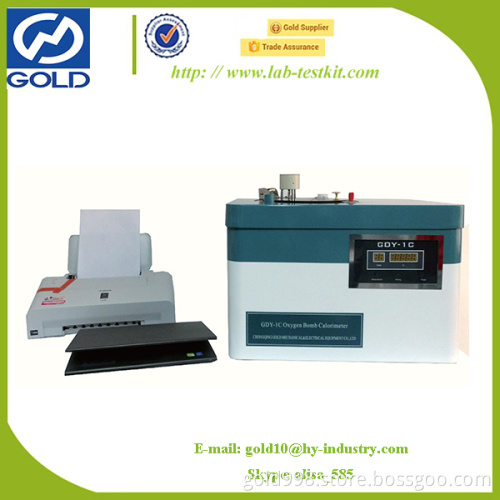

Coal Calorific Value Tester with Factory Price (GDY-1C)

1) The instrument adopts a high precision temperature sensor and a high performance A/D converter, and uses a SCM to form the temperature collection and transportation system.

 2) The instrument configuration laptop, composed of a high degree of automation, easy to use, convenient and intelligent data compilation instrument.

 3) The instrument is fully automated in the testing pr℃ess, after the sample in place, correct input various parameters automatically without manual intervention to complete each test pr℃ess; you can print measurement data directly on the A4-format printer configuration after the end of the trial.

Heat capacity: (14000 ~ 15000)J/K
Temperature resolution: 0.001 K
Thermal error: ≤60J/g
Temperature measurement range:  10 ℃~35 ℃
Repeatability error:  ≤0.2% (Grade C)
Pressure endured by Oxygen bomb:  20 MPa
Ambient temperature: 15 ℃~28 ℃ (room temperature), The temperature fluctuation during each test should be not more than 1 ℃
Storage Temperature data: 31
Ambient humidity: less than 85%
Power supply:  AC(220±5%)V,50Hz
Total power consumption:  less than 150W
Dimensions:  600 mm *460 mm * 430 mm (length × width × height, PC is not included)
Note: If the test sample is pulverized coal samples, in order to obtain better test results, we recommend separately of the company's private press cake machine.
