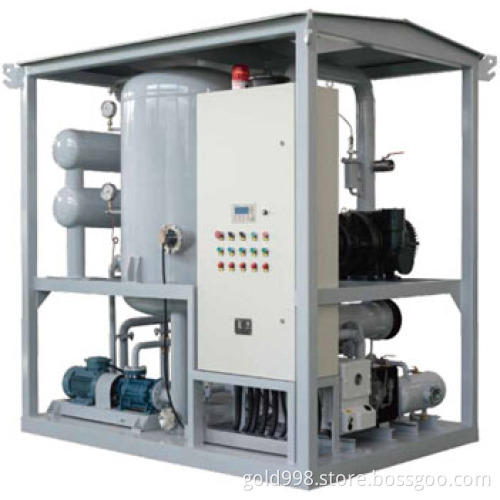

Double Stage High Vacuum Transformer Oil Purifier

I.Features

• Ideal for insulating oil clean up and transfer
• Regeneration of seriously deteriorated insulating oil
• For large power transmission equipments above 110KV
• Eight models available to accommodate various flow rates
• Continuously removes free water down to 5 ppm or less
• Fluid cleanliness grade (NAS) to 6 or better
• Powerful Vacuum design
• Dual water and particulate removal
• Coalescence-separation technology
• Duplex 3D evaporation technology
• Double-infrared fluid level controller
• A trinity of interlocked preventive device
• Carbon fiber infrared heating system
• Automatic back-flushing system.
• Unique H.P.M high molecule absorption material
• Mobile equipment for outdoor use
• Explosion-proof type available
• Live-line vacuum oiling and dehydrating feasible

II.Advantages:

• Comparing with the single-stage type, this series adopts the double-stages vacuum system, which immensely raises the machine's working vacuum degree, so it can dewater, degas and remove particulate impurities much more efficiently.
• Besides that, a special design enables this model to regenerate seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon effectively.
• It allows the power transmission equipment to remain in-service while impurities from it are effectively removed.
