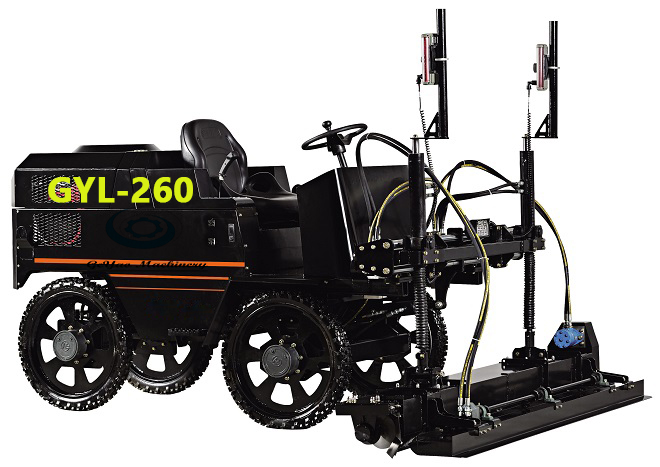

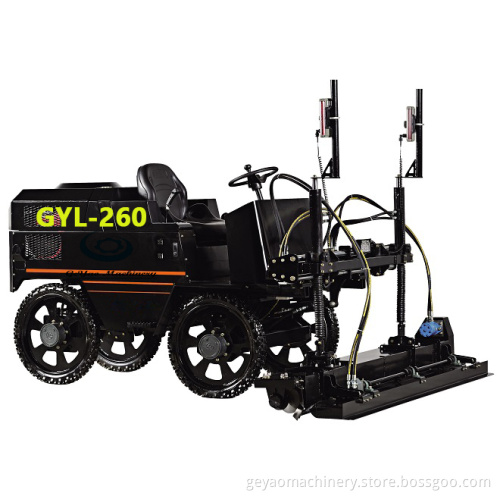

Construction fully hydraulic 4 wheel ride-on concrete laser screed

Construction fully hydraulic 4 wheel ride-on concrete laser screed

USD57500

≥1 Set/Sets

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shanghai
Productivity:	100 sets/month
Supply Ability:	100sets
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	CE.ISO
Transportation:	Ocean

Product Description

Features:

1.Type: mechanical-hydraulic driving style;
2.Engine: Honda GX690, electric start 3600 / 24HP horsepower;
3.Battery circuit: all cars equipped with 12V DC voltage generator 18 amps;
4.Optional laser system: the United States or Germany MOBA + Leica Trimble;
5.Vibration Control: US INDCOM company imported high-speed hydraulic motor;
6.Steering: Hydraulic power steering control;
7.Drive system: the original brand-name hydraulic hydraulic drive motor;
8.Walking System: four-wheel drive, closed system, manual adjustment;

9.Standard tires: 80/100 × 21 motorcycle tire puncture,

Specification

Model	GYL-R260C	GYL-R260
Engine Type	Honda GX690	Honda GX690
Power Kw(hp)	16.5(22.1)	16.5(22.1)
Weight kg(lbs)	1150(2531)	1150(2531)
Oil Tank Capacity L	45	45
Screed Head Width mm	2520	2520
Levelling System	Screed head fixed	Screed head fixed
Self Propel	Standard	Standard
Electrical Starter	Standard	Standard
Auto Level	Standard	Standard
Laser System	German MOBA+Leica	German MOBA+Leica
Drive Unit	Hydraulic Motor	Hydraulic Motor
Main Pump	French POCLAIN HYDRAULICS axial piston pump	French POCLAIN HYDRAULICS axial piston pump
Master Valve	US HYDRAFORCE main control valve	US HYDRAFORCE main control valve
Vibration Control System	US INDCOM high-speed hydraulic motor	US INDCOM high-speed hydraulic motor
