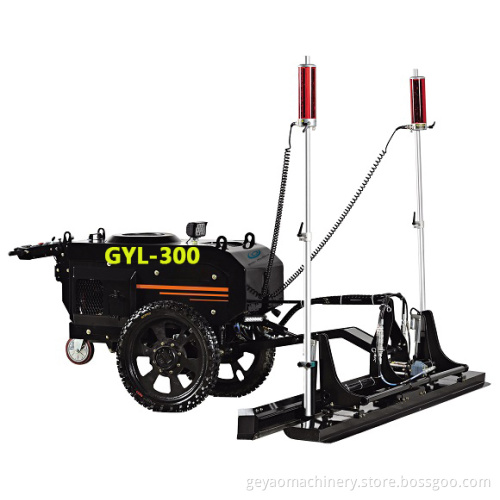

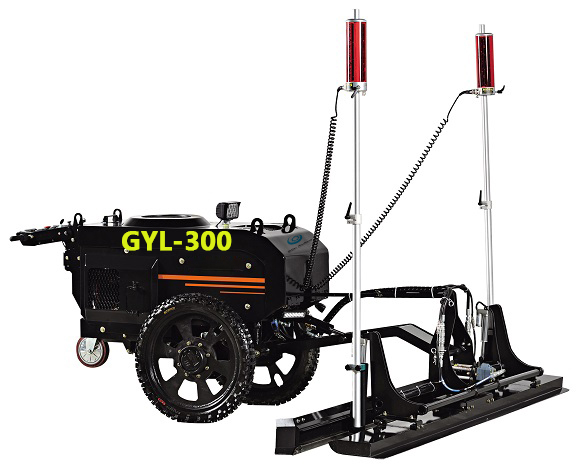

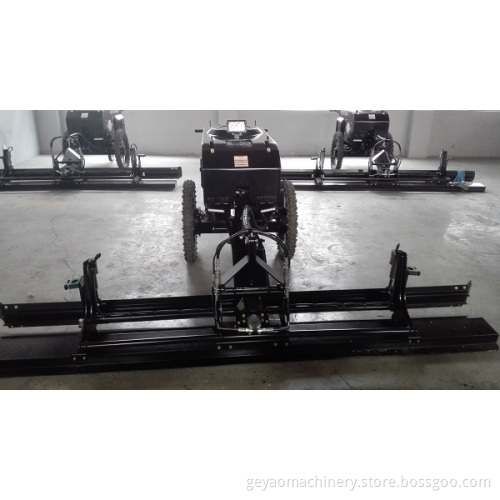

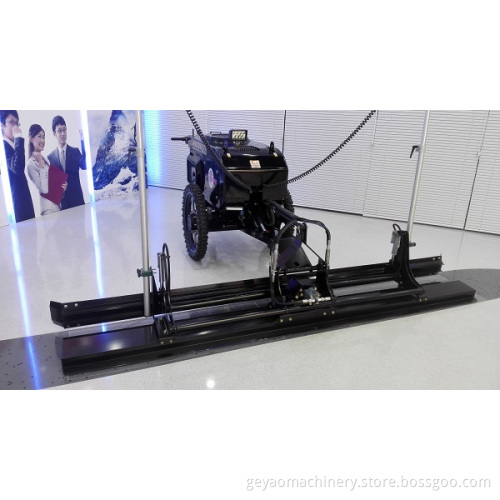

concrete pavement laser screed with trimble

concrete pavement laser screed with trimble

USD51250

≥1 Set/Sets

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shanghai
Productivity:	100 sets/month
Supply Ability:	100sets
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	CE.ISO
Transportation:	Ocean

Product Description

Features

1.Hydraulic machinery walk-behind;
2.Engine: American Kohler CH440, electric start 3600/14 horsepower;
3.Battery circuit: all cars equipped with 12V DC voltage generator 18 amps;
4.Optional laser system: US Tianbao, Germany MOBA + Leica;
5.Drive system: Hydraulic Italy Sam hydraulic SAM HYDRAULIC imported hydraulic drive motor;
6.Walking Control: Manual adjustment, mechanical proportional hydraulic valve;
7.Standard tires: 80/100 × 21 motorcycle tire choice AT28 × 10.00-12 ATV tires;
8.Suspension: Independent hydraulic suspension system;

Specification

Model	GYL-P300	GYL-E300
Engine Type	Kohler CH440	Kohler CH440
Power Kw(hp)	10.3/14.0	10.3/14.0
Weight(lbs)	398(876)	398(876)
Oil Tank Capacity(L)	14	14
Screed Head Width(m)	3.0	3.0
Self Propel	Standard	Standard
Electric Starter	Standard	Standard
Auto Level	Standard	Standard
Laser System	US Trimble,German MOBA+Leica,or Topcon	German MOBA+Leica
Drive Unit	Italy SAM hydraulic motor	Hydraulic motor
Main Pump	German REXROTH axial piston pump	High performance axial piston pump
Filters	Italy OMT high-precision filters	high-precision filters
Master Valve	Sauer-danfoss main control valve	Load sensitive pressure compensated main control valve
Vibration Control System	US INDCOM high-speed hydraulic motor	Chinese high-speed hydraulic motor
Accumulator	German HYDAC high-pressure accumulator	high-pressure accumulator
Hydraulic Hose	US GATES high-pressure hose	High-pressure resistance Hose

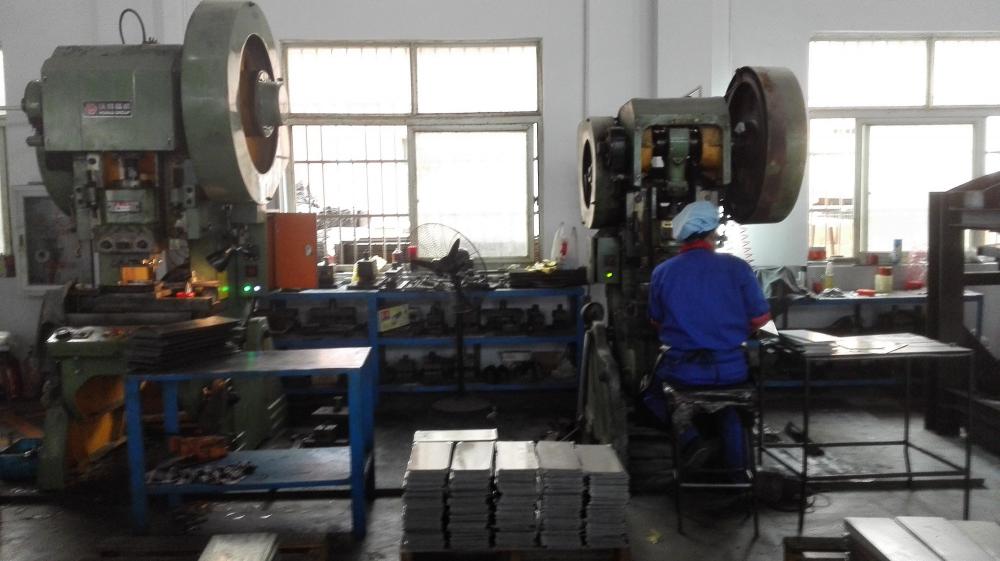

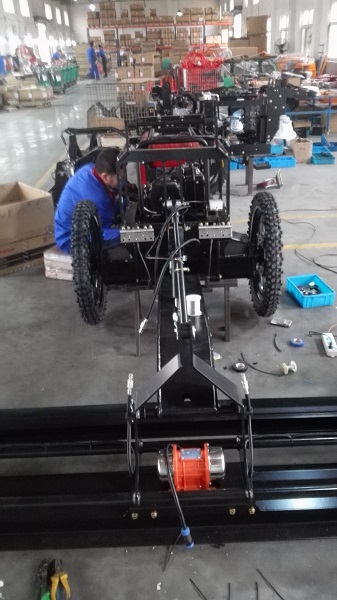

Manufacturing Processing

Packing
