Automatic Degassing Oscillator for Separating Gas Dissolved in The Insulating Oil

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Supply Ability:	100 set/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB
Certificate:	ISO
Transportation:	Ocean,Land,Air

Product Description

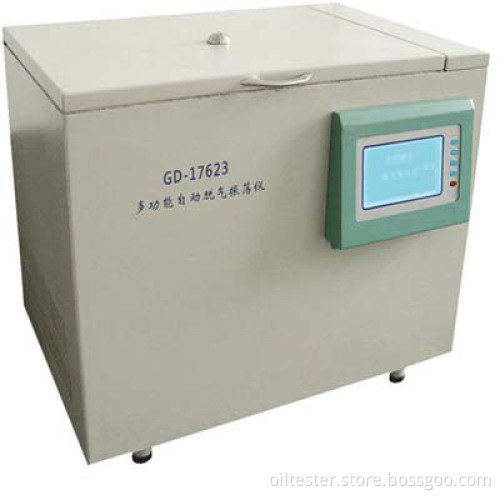

GD-17623 Automatic Multifunctional Degassing Oscillation Tester

Introduction:

» This instrument is designed and made as per national standard GB/T 17623-1998 Determination of componental contents of gases dissolved in insulating oil by gas chromatography method. It is suitable to do degassing and oscillation for gas in electric insulating oil.

I. Main Technical Features

» This instrument adopts new technologies of LCD graphic scrolling show, man-machine dialog interface and menu prompt type input. Easy to observe.

» This instrument has features of clear interface, easy operation, high accuracy, low noise and small in size.It achieves automation of determination.

II. Main Technical Specifications

1	Display	LCD
2	Temperature range	Ambient~99.9℃
3	Working environment	(10~40)℃, relative humidity ≤85%
4	Temperature control accuracy	(Ambient~50)℃±0.2℃; (50~80)℃±0.3℃
5	Oscillation frequency	(275±3) times/min
6	Oscillation amplitude	35mm
7	Time control	Oscillation for 20min,stand still for 10min and temperature being constant at 50℃
		Oscillation for 5min,stand still and give alarm to keep constant temperature at 70℃
		Any time set for oscillation and stand still within (0~99) min
		Any temperature set within (0~99)℃
8	Samples	100ml, 8 pieces
9	Maximum power consumption	1000 VA
10	Power supply	AC(220±10%)V, 50Hz±2.5Hz
11	Dimension	500mm×360mm×420mm
