Existent Gum Apparatus for Motor Gasoline and Aviation Fuels
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 100 Sets/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO |
| Transportation: | Ocean,Land |
Product Description
Product Description
Introduction:

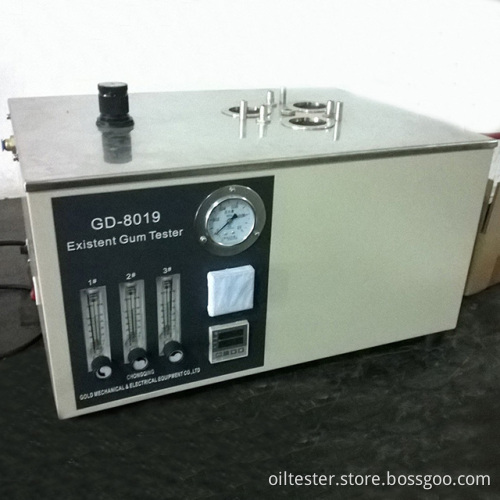

- GD-8019 Aviation Gasoline Existent Gum Test Apparatus is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation.
- GD-8019 Aviation Gasoline Existent Gum Test Apparatus is suitable to determine the existent gum content of Aviation Gasoline and Motor Gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)
I. Main Technical Features
- It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.
- The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
- The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.
II. Main Technical Specs
| 1 | Power supply | AC(220±10%)V,50Hz,2500W |
| 2 | Dimension of evaporation bath | φ260mm×130mm |
| 3 | Sample positions | 3 positions |
| 4 | Dimension of sample positions | φ51mm×70mm |
| 5 | Working temperature | (160~165)°C |
| 6 | Temperature control | Automatic |
| 7 | Temperature display | Digital display |
| 8 | Flow display | Displayed by a ball float type flowmeter |
| 9 | Working pressure of air reducing valve | 0.035MPa |
| 10 | Air source | External connection,over (1000±150)mL/s |
| 11 | Dimension | 590mm×480mm×340mm(Thermometer holder is not included) |
Note: A air compressor is equipped
III. Packling List
|
No.
|
Product Name | Unit | Quantity |
| 1 | GD-8019 Existent Gum Apparatus | Set | 1 |
| 2 | Air compressor | Set | 1 |
| 3 | Power wire of Air compressor | Root | 1 |
| 4 | Divergent nozzle | PC | 3 |
| 5 | Thermometer holder | PC | 3 |
| 6 | Beaker | PC | 6 |
| 7 | Thermometer(-5~400°C/1°C) | PC | 4 |
| 8 | Fuse 15A(Inner Dia.5×20) | PC | 2 |
| 9 | Air hose | Root | 1 |
| 10 | Sintered glass funnel | PC | 1 |
| 11 | Stainless Stell Tweeze(25cm) | PC |
1 |
