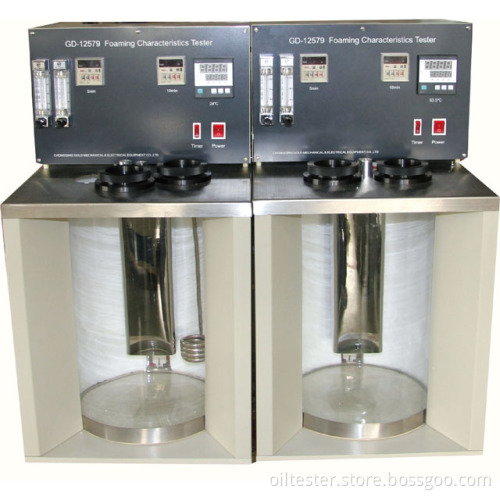

Lubricating Oil Foam Stability Testing Foam Tester

GD-12579 Lubricating Oil Foam Stability Testing Foam Tester

I.Brief Introduction:

• The instrument foam tester is designed and made as per the national standard of People`s Republic of China GB/T12579 Test Method for Foaming Characteristics of Lubricating Oil.

• It is suitable to determine foaming characteristics of lubricating oil, which is used to evaluate foaming tendency and foaming stability of lubricating oil.

II.Main technical specifications and parameters

• Power supply: AC 220 V±10%, 50 Hz

• Main heating power: 650 W

• Auxiliary heating power: 1000 W

• Refrigeration power: 500 W

• Flow rate of air: 94±5 ml/min, adjustable

• Temperature controlling range: room temperature~99.9 °C (high temperature bath)

• Temperature controlling range: 5~99.9 °C (low temperature bath)

• Temperature controlling accuracy: ±0.5 °C

• Timer: 5 minutes and 10 minutes, nearest to 1 second

• Timing accuracy: 0.01%+0.05 s (at 20 °C)

• Ambient temperature: -10°C~+40 °C

• Relative humidity: ≤85%

• Total power consumption: ≤3000 W
