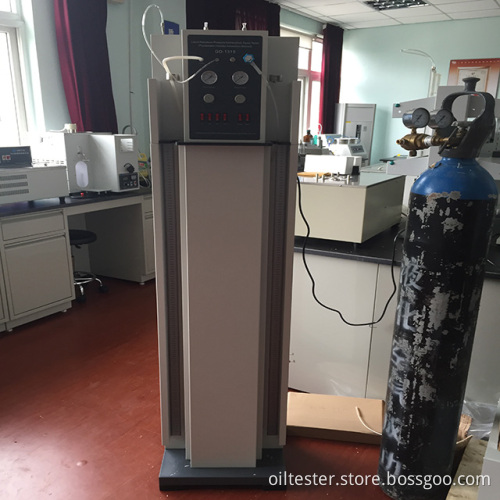

ASTM D1319 Liquid Petroleum Products Hydrocarbon Analyzer
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing,China |
|---|---|
| Supply Ability: | 100 sets/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Intruduction:
- GD-11132 Liquid Petroleum Products Hydrocarbon Analyzer is designed and made as per national standard of People`s Republic of China GB/T 11132 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption and ASTM D 1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption.
- GD-11132 FID Hydrocarbon Analyzer ASTM D1319 is suitable to make the main hydrocarbon of liquid petroleum products shown on the silica gel adsorption column with fluorescent indicator.Then calculate it's volume percentage.This will be regarded as the quality measurement index of engine fuel,aviation fuel and other fuel oils.
- GD-11132 Liquid Petroleum Products Hydrocarbon Analyzer is a kind of professional instrument determining percentage of aromatic hydrocarbon,olefin and saturated hydrocarbon in petroleum fraction.
Features:
- Vertical type and uni-body design. No need to install.
- This instrument is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
- Two pieces of imported precise glass tube adsorption column.Convenient for operation.
- Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.
Specification:
| 1 | Power supply | AC220V±5%, 50Hz |
| 2 | Pressure regulating range of reducing valve | (0~400)kPa |
| 3 | Electric agitator | independently controlled for each way |
| 4 | Ultraviolet light source pipe | 1220mm in length,wavelength is 365mm±5nm |
| 5 | Illuminating lamp | 1220mm in length,power is 40W |
| 6 | Air supply | Nitrogen cylinder (or air compressor, compressed air bottle) |
| 7 | Ambient temperature | (5~35)℃ |
| 8 | Relative humidity | ≤85% |
| 9 | Dimension | 350mm×400mm×1770mm |
| 10 | Maximum power consumption | 600W |
