Insulating Oil Breakdown Voltage Tester /Withstand Voltage Tester
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Introduction:

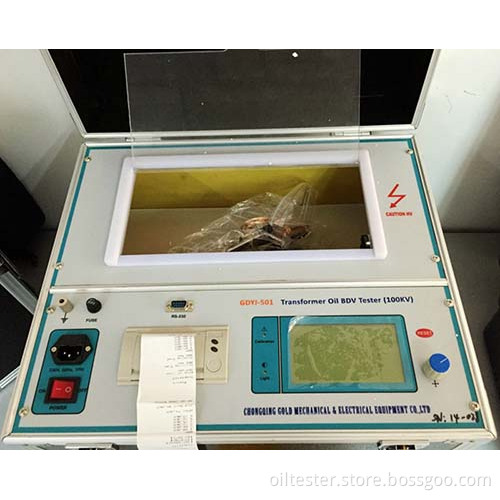

- GDYJ-501 Automatic Transformer Oil BDV Dielectric Strength Tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .
- It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-501 Automatic Transformer Oil BDV Dielectric Strength Tester.You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.
Functions of BDV Tester:
| 1 Breakdown test of user-defined |
| 2 Proof test |
| 3 Calibration interface for customers |
| 4 Unloading data to PC and making word report automatically. |
|
5 Result print |
Specifications of BDV Tester:
| 1 | Output voltage | AC 0~80KV/AC 0~100KV |
| 2 | Rate of voltage rise | 2KV/s±10% |
| 3 | Measuring precision | 3%RDG+0.3%FS |
| 4 | Test times setting | 1~9 |
| 5 | Mixing time setting | 0~99 second |
| 6 | Waiting time setting | 0-9 minute 59second |
| 7 | Maximum storage capacity | 100 groups of test data |
| 8 | Test standards | IEC60156 |
| 9 | Display | 256*128 LCD |
| 10 | Rated power supply | AC 220V±10% 50Hz/60Hz |
| 11 | Environment temperatures | 0-50°C |
| 12 | Relative humidity | ≤80%RH |
| 13 | Size | 420×380×410mm3 |
| 14 | Weight | 28kg |
